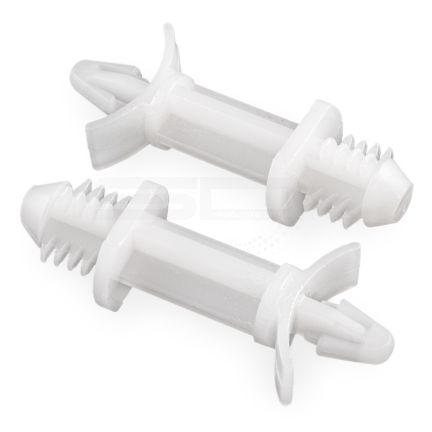

Arrow Head Blind Hole Circuit Board Support Posts
Product Description
Material
Natural Nylon 6/6 V2. Flame retardant Nylon 6/6 V0 available on request.
| Product Code | A | B | C | Top Hole | Top Panel | Bottom Hole | Bottom Panel | Colours | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|
| BHCBSP-V2-AH-0010-NAT | 6.4 | 6.7 | 9.5 | 4 | 0.8 - 2 | 6.3 | 6.4 | Natural | Enquire Now |
| BHCBSP-V2-AH-0020-NAT | 6.4 | 8.3 | 11.1 | 4 | 0.8 - 2 | 7.9 | 6.4 | Natural | Enquire Now |
| BHCBSP-V2-AH-0030-NAT | 9.5 | 6.7 | 9.5 | 4 | 0.8 - 2 | 6.3 | 6.4 | Natural | Enquire Now |
| BHCBSP-V2-AH-0040-NAT | 9.5 | 8.3 | 11.1 | 4 | 0.8 - 2 | 7.9 | 6.4 | Natural | Enquire Now |
| BHCBSP-V2-AH-0050-NAT | 12.7 | 6.7 | 9.5 | 4 | 0.8 - 2 | 6.3 | 6.4 | Natural | Enquire Now |
| BHCBSP-V2-AH-0060-NAT | 12.7 | 8.3 | 11.1 | 4 | 0.8 - 2 | 7.9 | 6.4 | Natural | Enquire Now |
| BHCBSP-V2-AH-0070-NAT | 15.9 | 6.7 | 9.5 | 4 | 0.8 - 2 | 6.3 | 6.4 | Natural | Enquire Now |
| BHCBSP-V2-AH-0080-NAT | 15.9 | 8.3 | 11.1 | 4 | 0.8 - 2 | 7.9 | 6.4 | Natural | Enquire Now |
| BHCBSP-V2-AH-0090-NAT | 19.1 | 6.7 | 9.5 | 4 | 0.8 - 2 | 6.3 | 6.4 | Natural | Enquire Now |
| BHCBSP-V2-AH-0100-NAT | 19.1 | 8.3 | 11.1 | 4 | 0.8 - 2 | 7.9 | 6.4 | Natural | Enquire Now |
| BHCBSP-V2-AH-0110-NAT | 22.2 | 6.7 | 9.5 | 4 | 0.8 - 2 | 6.3 | 6.4 | Natural | Enquire Now |
| BHCBSP-V2-AH-0120-NAT | 22.2 | 8.3 | 11.1 | 4 | 0.8 - 2 | 7.9 | 6.4 | Natural | Enquire Now |
