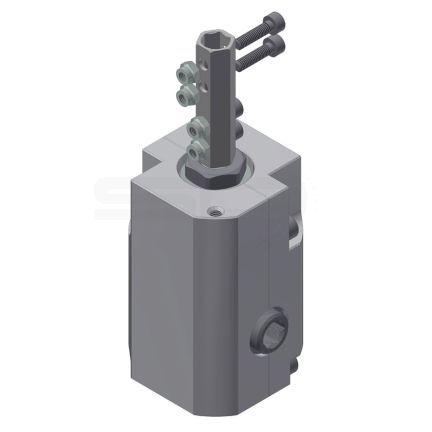

Bevel gear 3058
Product Description
Compact gear for big umbrellas, industry applications.
Special features
A special toothing ensures a smooth running of the gear.
Ratio1:4
Housing made of aluminium
Case-hardened bevel wheels
Customer specific
Input and output can be modified to a customer specific appliance. The bevel gear can be combined with any spindle type.
| Product Code | Ratio | Input | Output | Number of bevel wheels | Housing material | Max. drive torque | Max. pressure load static (temporary) | Max. traction load static (temporary) | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|
| 3058.00-0005 | 1:4 | hex 9 mm | hex 9 mm | 2 | aluminium | 10 Nm | 12,000 N | 10,000 N | Enquire Now |
