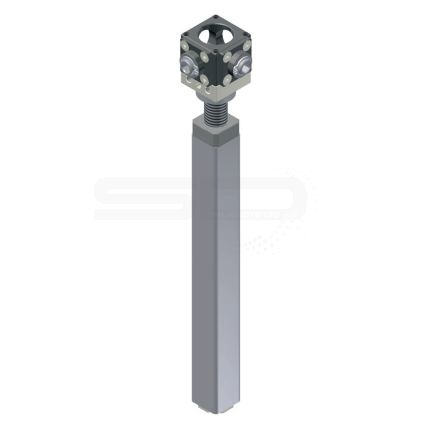

Bevel gear with spindle and support tube 3010 / 3011
This gear unit is designed to be used for many different mechanical drive solutions. Applications of adjustment for: steppless height-adjustable desks, umbrellas, adjustable windows, partition walls, etc. and any kind of linear adjustment in the industrial machinery industry.
Special features
Ratio 1.3:1
Glass fibre reinforced plastic housing
Hardened steel gear cogs
1200 N load
Customer specific
Because of the modular design it is possible to meet special customer requirements even for small quantities. The gear is available in various lengths and with various mounting brackets. Up to 4 input wheels are possible. The gear can be also driven from above.
Caution
Please take into account that depending on the spindle pitch, the system could back-drive.
| Product Code | Ratio | Input | Stroke max. | Type of spindle | Number of inputs | Max. drive torque | Max. lifting force | No. of Packs |
|---|---|---|---|---|---|---|---|---|
| 3010 | 1.3:1 | hex 6 mm | retracted height -99 mm | Tr14x3 RH | max. 4 | 3 Nm | 1200 N | Enquire Now |
| 3011 | 1.3:1 | hex 6 mm | retracted height -99 mm | Tr14x3 LH | max. 4 | 3 Nm | 1200 N | Enquire Now |
