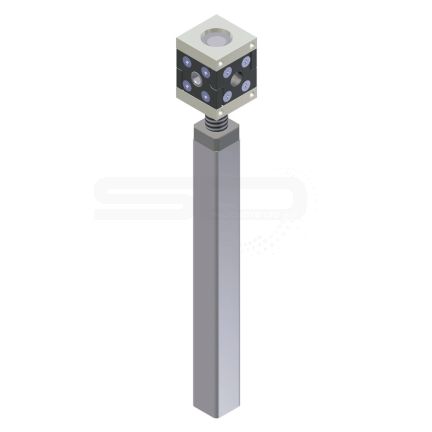

Bevel gear with spindle and support tube 3035 / 3036
Product Description
Gear for stepless height adjustment for sit-sit or sit-stand workplaces. The gear is adapted for both, manual and motorized height adjustment.
Special features
The housing is made of zinc die-casting and there is a ball-bearing at the output side. The output can be loaded on pull or push force.
Customer specific
The gear can be supplied with various spindle lengths and spindle pitches.
Caution
Please take into account that depending on the spindle pitch, the systems could back-drive.
| Product Code | Ratio | Input | Stroke max. | Type of spindle | Max. drive torque | Max. lifting force | No. of Packs |
|---|---|---|---|---|---|---|---|
| 3035 | 1.5:1 | hex 6 mm | retracted length -105 mm | Tr14x3 RH | 4 Nm | 1000 N | Enquire Now |
| 3036 | 1:1 | hex 6 mm | retracted length -105 mm | Tr14x3 RH | 4 Nm | 1000 N | Enquire Now |
