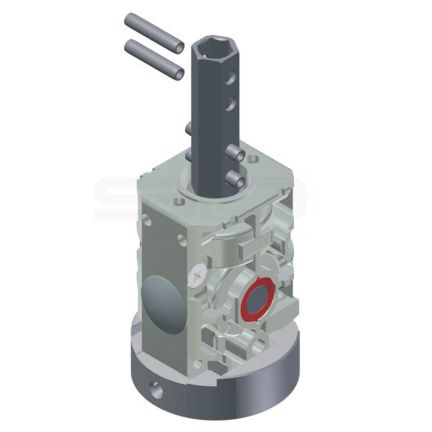

Bevel gearbox 3056
Product Description
Compact gear for big umbrellas, dividing wall systems and industrial applications.
Special features
A special toothing ensures a smooth running of the gear.
Ratio1:2
Housing made of die-cast zinc
Case-hardened bevel wheels
Customer specific
Input and output can be modified to a customer specific appliance.
| Product Code | Ratio | Input | Output | Number of bevel wheels | Housing material | Max. drive torque | Max. traction load static | Max. pressure load static | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|
| 3056 | 1 : 2 | hex 7 mm | hex 9 mm | 2 | die-cast zinc | 6 Nm | 8000 N | 8000 N | Enquire Now |
