Bolt Retainers
Product Description

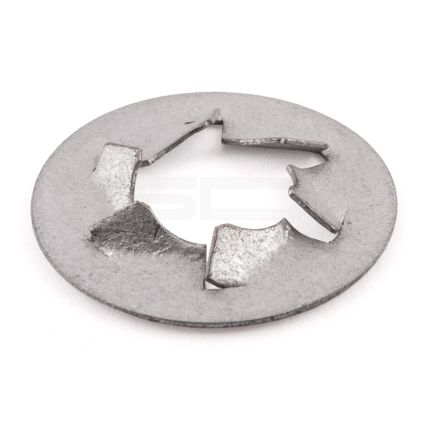

Bolt Retainers are designed to be pushed onto a bolt to prevent the thread coming away from the assembly.
Material
Austempered Carbon Steel
Finish
Phosphate Paint Black
Specials
If the the Bolt Retainer required is not shown, then please enquire to our sales office. We have a large range of imperial sizes and different finishes available.
*Extra Measurements
F1 = Maximum Push on Force in Newtons.
F2 = Minimum Holding Strength in Newtons.
| Product Code | Thread | D | F1 | F2 | H | Pricei | Stock | Pack Sizei | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|
| 43050-29 | M4 | 10 | 98 | 223 | 1.3 | i | i | - | Enquire Now |
| 43540-29 | M5 | 11 | 111 | 290 | 1.7 | i | i | - | Enquire Now |
| 42640-29 | M6 | 13 | 111 | 400 | 2.2 | i | i | - | Enquire Now |
| 42780-29 | M8 | 16 | 156 | 445 | 2.2 | i | i | - | Enquire Now |
| 43680-29 | M10 | 20 | 156 | 668 | 2.4 | £12.00 | 840 |
100
|
|
| 42580-29 | M12 | 21 | 111 | 1335 | 3 | i | i | - | Enquire Now |
| BR-140021 | M14 | 21.5 | - | - | 2.9 | i | i | - | Enquire Now |
