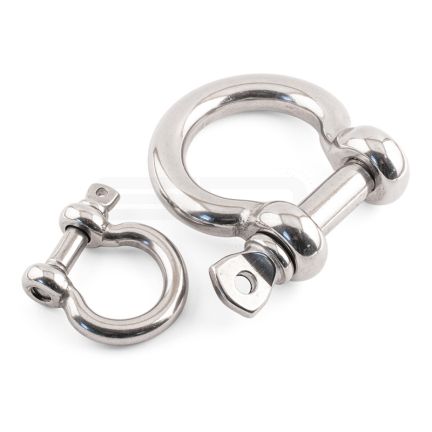

Bow Shackles - 316 / A4 Stainless Steel
Product Description
Bow shaped shackles with a removable collared pin, often used in lifting and rigging systems.
Material
316 / A4 Stainless Steel
| Product Code | A | D | L | R | Min. Breaking Load | Pricei | Stock | Pack Sizei | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|
| BOW-SHACKLE-SCREWPIN-A4-4 | 8 | 4 | 16 | 14 | 5.8 kN | £6.80 | 1480 |
10
|
|
| BOW-SHACKLE-SCREWPIN-A4-5 | 10 | 5 | 20 | 17 | 9.1 kN | £7.13 | 605 |
10
|
|
| BOW-SHACKLE-SCREWPIN-A4-6 | 12 | 6 | 24 | 21 | 13.2 kN | £10.00 | 536 |
10
|
|
| BOW-SHACKLE-SCREWPIN-A4-8 | 16 | 8 | 32 | 28 | 23.7 kN | £7.53 | 609 |
5
|
|
| BOW-SHACKLE-SCREWPIN-A4-10 | 20 | 10 | 40 | 35 | 37.3 kN | £12.96 | 220 |
5
|
|
| BOW-SHACKLE-SCREWPIN-A4-12 | 24 | 12 | 48 | 42 | 54.9 kN | £7.94 | 290 |
2
|
|
| BOW-SHACKLE-SCREWPIN-A4-14 | 28 | 14 | 56 | 49 | 74.8 kN | £6.48 | 120 |
1
|
|
| BOW-SHACKLE-SCREWPIN-A4-16 | 32 | 16 | 64 | 56 | 97.7 kN | £10.00 | 155 |
1
|
|
| BOW-SHACKLE-SCREWPIN-A4-19 | 38 | 19 | 76 | 66 | 152.6 kN | £21.87 | 44 |
1
|
|
| BOW-SHACKLE-SCREWPIN-A4-22 | 44 | 22 | 88 | 77 | 184.7 kN | £32.40 | 13 |
1
|
|
| BOW-SHACKLE-SCREWPIN-A4-25 | 50 | 25 | 100 | 88 | 223.8 kN | £48.60 | 6 |
1
|
