Castors – 3470PIR
Product Description

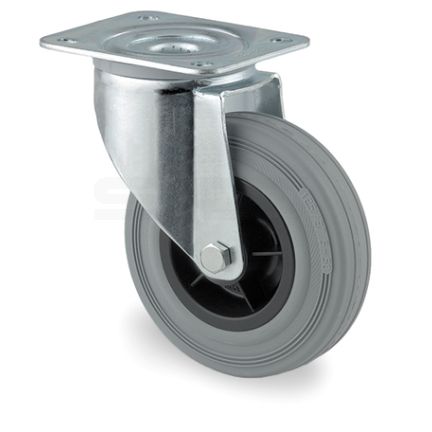

Swivel castor, housing made of pressed steel, bright zinc plated, blue passivated, double ball bearing swivel head, wheel axle with nut, dustguard, plate fitting.
Material
Wheel centre made of polypropylene, tread: solid rubber, grey non-marking, roller bearing.
| Product Code | Load Capacity | Load Capacity (static) | Plate Size | Wheel Diameter | Width of Tread | Plate Hole | Plate Hole Centres | No. of Packs |
|---|---|---|---|---|---|---|---|---|
| 3470PIR080P62 | 70kg | 140kg | 105 x 85mm | 80mm | 35mm | 9mm | 80/77 x 60mm | Enquire Now |
| 3470PIR100P62 | 75kg | 150kg | 105 x 85mm | 100mm | 35mm | 9mm | 80/77 x 60mm | Enquire Now |
| 3470PIR125P62 | 100kg | 200kg | 105 x 85mm | 125mm | 37mm | 9mm | 80/77 x 60mm | Enquire Now |
| 3470PIR125P63 | 100kg | 200kg | 137 x 105mm | 125mm | 37mm | 11mm | 105 x 80/75mm | Enquire Now |
| 3470PIR160P63 | 135kg | 270kg | 137 x 105mm | 160mm | 40mm | 11mm | 105 x 80/75mm | Enquire Now |
| 3470PIR200P63 | 205kg | 410kg | 137 x 105mm | 200mm | 50mm | 11mm | 105 x 80/75mm | Enquire Now |
