Castors – 3470UFR
Product Description

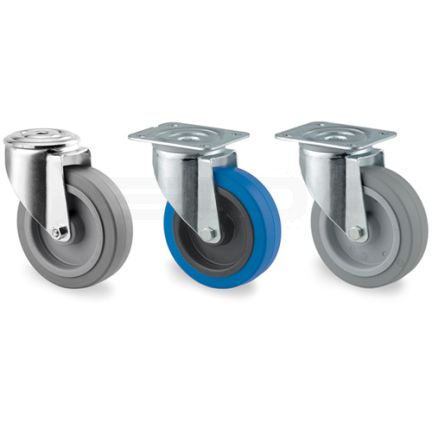

Swivel castor, housing made of pressed steel, bright zinc plated, blue passivated, double ball bearing swivel head, wheel axle with nut, dustguard, plate fitting or bolt hole.
Material
Wheel centre made of polyamide, tread: elastic-tyre, non-marking, roller bearing.
Product Code | Load Capacity | Load Capacity (static) | Plate Size | Wheel Diameter | Width of Tread | Plate Hole | Plate Hole Centres | Centre Hole | No. of Packs |
---|---|---|---|---|---|---|---|---|---|
3470UFR100P62 | 160kg | 320kg | 105 x 85mm | 100mm | 34mm | 9mm | 80/77 x 60mm | - | Enquire Now |
3470UFR100P30-13 | 150kg | 300kg | - | 100mm | 34mm | - | - | 13mm | Enquire Now |
3470UFR125P62 | 250kg | 500kg | 105 x 85mm | 125mm | 40mm | 9mm | 80/77 x 60mm | - | Enquire Now |
3470UFR125P62-BLUE | 250kg | 500kg | 105 x 85mm | 125mm | 40mm | 9mm | 80/77 x 60mm | - | Enquire Now |
3470UFR125P63 | 250kg | 500kg | 137 x 105mm | 125mm | 40mm | 11mm | 105 x 80/75mm | - | Enquire Now |
3470UFR125P30-13 | 150kg | 300kg | - | 125mm | 40mm | - | - | 13mm | Enquire Now |
3470UFR160P63 | 300kg | 600kg | 137 x 105mm | 160mm | 46mm | 11mm | 105 x 80/75mm | - | Enquire Now |
3470UFR160P30-13 | 200kg | 400kg | - | 160mm | 46mm | - | - | 13mm | Enquire Now |
3470UFR200P63 | 400kg | 800kg | 137 x 105mm | 200mm | 46mm | 11mm | 105 x 80/75mm | - | Enquire Now |
3470UFR200P30-13 | 200kg | 400kg | - | 200mm | 46mm | - | - | 13mm | Enquire Now |
