Castors – 3477UAR

Product Description

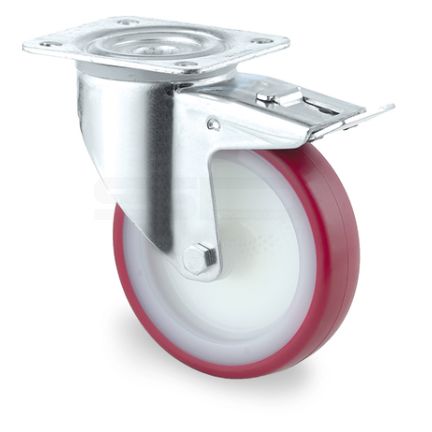

Swivel castor with total lock, tail end of castor, housing made of pressed steel, bright zinc plated, blue passivated, double ball bearing swivel head, wheel axle with nut, dustguard, plate fitting.

Material
Wheel centre made of polyamide, tread: polyurethane, roller bearing.

Product Code Load Capacity Load Capacity (static) Plate Size Wheel Diameter Width of Tread Plate Hole Plate Hole Centres No. of Packs
3477UAR080P62-RED 100kg 200kg 105 x 85mm 80mm 32mm 9mm 80/77 x 60mm Enquire Now
3477UAR100P62-RED 150kg 300kg 105 x 85mm 100mm 32mm 9mm 80/77 x 60mm Enquire Now
3477UAR125P62-RED 200kg 400kg 105 x 85mm 125mm 32mm 9mm 80/77 x 60mm Enquire Now
3477UAR125P63-RED 300kg 600kg 137 x 105mm 125mm 40mm 11mm 105 x 80/75mm Enquire Now
3477UAR160P63-RED 350kg 700kg 137 x 105mm 160mm 40mm 11mm 105 x 80/75mm Enquire Now
3477UAR200P63-RED 350kg 700kg 137 x 105mm 200mm 46mm 11mm 105 x 80/75mm Enquire Now
