Castors – 3478PIR
Product Description

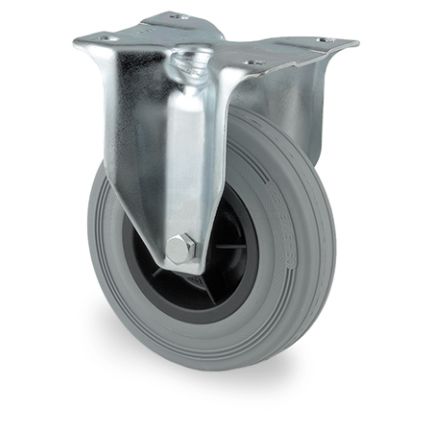

Fixed castor, fork made of pressed steel, bright zinc plated, blue passivated, wheel axle with nut, plate fitting.
Material
Wheel centre made of polypropylene, tread: solid rubber, grey non-marking, roller bearing.
| Product Code | Load Capacity | Load Capacity (static) | Plate Size | Wheel Diameter | Width of Tread | Plate Hole | Plate Hole Centres | No. of Packs |
|---|---|---|---|---|---|---|---|---|
| 3478PIR080P62 | 70kg | 140kg | 103 x 85mm | 80mm | 35mm | 9mm | 80/77 x 60mm | Enquire Now |
| 3478PIR100P62 | 75kg | 150kg | 103 x 85mm | 100mm | 35mm | 9mm | 80/77 x 60mm | Enquire Now |
| 3478PIR125P62 | 100kg | 200kg | 103 x 85mm | 125mm | 37mm | 9mm | 80/77 x 60mm | Enquire Now |
| 3478PIR125P63 | 100kg | 200kg | 137 x 105mm | 125mm | 37mm | 11mm | 105 x 80/75mm | Enquire Now |
| 3478PIR160P63 | 135kg | 270kg | 137 x 115mm | 160mm | 40mm | 11mm | 105 x 80/75mm | Enquire Now |
| 3478PIR200P63 | 205kg | 410kg | 137 x 115mm | 200mm | 50mm | 11mm | 105 x 80/75mm | Enquire Now |
