Castors – 3478UAR
Product Description

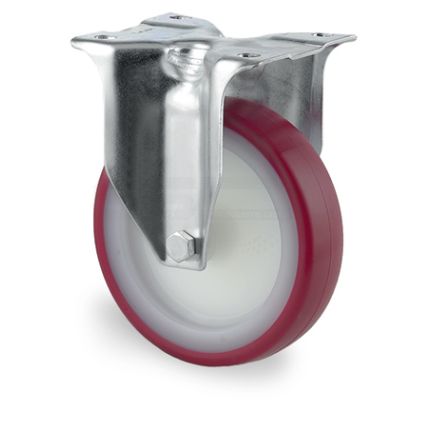

Fixed castor, fork made of pressed steel, bright zinc plated, blue passivated, wheel axle with nut, plate fitting.
Material
Wheel centre made of polyamide, tread: polyurethane, roller bearing.
| Product Code | Load Capacity | Load Capacity (static) | Plate Size | Wheel Diameter | Width of Tread | Plate Hole | Plate Hole Centres | No. of Packs |
|---|---|---|---|---|---|---|---|---|
| 3478UAR080P62-RED | 100kg | 200kg | 103 x 85mm | 80mm | 32mm | 9mm | 80/77 x 60mm | Enquire Now |
| 3478UAR100P62-RED | 150kg | 300kg | 103 x 85mm | 100mm | 32mm | 9mm | 80/77 x 60mm | Enquire Now |
| 3478UAR125P62-RED | 200kg | 400kg | 103 x 85mm | 125mm | 32mm | 9mm | 80/77 x 60mm | Enquire Now |
| 3478UAR125P63-RED | 300kg | 600kg | 137 x 115mm | 125mm | 40mm | 11mm | 105 x 80/75mm | Enquire Now |
| 3478UAR160P63-RED | 350kg | 700kg | 137 x 115mm | 160mm | 40mm | 11mm | 105 x 80/75mm | Enquire Now |
| 3478UAR200P63-RED | 350kg | 700kg | 137 x 115mm | 200mm | 46mm | 11mm | 105 x 80/75mm | Enquire Now |
