Castors – 3478UFR
Product Description

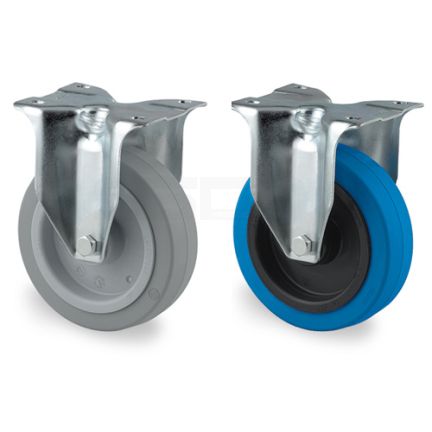

Fixed castor, fork made of pressed steel, bright zinc plated, blue passivated, wheel axle with nut, plate fitting.
Material
Wheel centre made of polyamide, tread: elastic-tyre, non-marking, roller bearing.
| Product Code | Load Capacity | Load Capacity (static) | Plate Size | Wheel Diameter | Width of Tread | Plate Hole | Plate Hole Centres | No. of Packs |
|---|---|---|---|---|---|---|---|---|
| 3478UFR100P62-BLUE | 160kg | 320kg | 103 x 85mm | 100mm | 34mm | 9mm | 80/77 x 60mm | Enquire Now |
| 3478UFR100P62 | 160kg | 320kg | 103 x 85mm | 100mm | 34mm | 9mm | 80/77 x 60mm | Enquire Now |
| 3478UFR125P62-BLUE | 250kg | 500kg | 103 x 85mm | 125mm | 40mm | 9mm | 80/77 x 60mm | Enquire Now |
| 3478UFR125P62 | 250kg | 500kg | 103 x 85mm | 125mm | 40mm | 9mm | 80/77 x 60mm | Enquire Now |
| 3478UFR125P63 | 250kg | 500kg | 137 x 115mm | 125mm | 40mm | 11mm | 105 x 80/75mm | Enquire Now |
| 3478UFR160P63 | 300kg | 600kg | 137 x 115mm | 160mm | 46mm | 11mm | 105 x 80/75mm | Enquire Now |
| 3478UFR200P63 | 400kg | 800kg | 137 x 115mm | 200mm | 46mm | 11mm | 105 x 80/75mm | Enquire Now |
