Castors – 4687ITP
Product Description

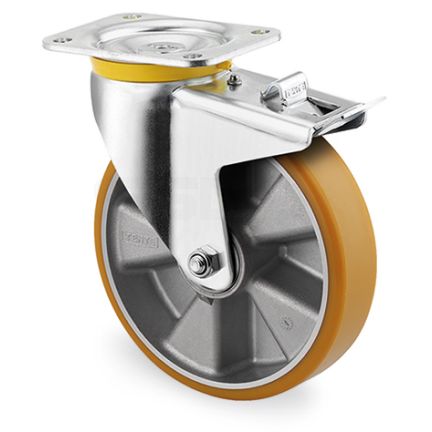

Swivel castor with total lock, tail end of castor, housing made of very heavy pressed steel, reinforced, bright zinc plated, blue passivated, sealed swivel double ball bearing, reinforced and heat-treated ball covers, riveted king pin, dust ring with integrated grease nipple, wheel axle with nut, plate fitting.
Material
Wheel centre made of aluminium, tread: polyurethane, casted, precision ball bearing.
| Product Code | Load Capacity | Load Capacity (static) | Plate Size | Wheel Diameter | Width of Tread | Plate Hole | Plate Hole Centres | No. of Packs |
|---|---|---|---|---|---|---|---|---|
| 4687ITP125P63-FLAT | 500kg | 1000kg | 137 x 105mm | 125mm | 50mm | 11mm | 105 x 80/75mm | Enquire Now |
| 4687ITP160P63-FLAT | 800kg | 1600kg | 137 x 105mm | 160mm | 50mm | 11mm | 105 x 80/75mm | Enquire Now |
| 4687ITP200P63-FLAT | 800kg | 1600kg | 137 x 105mm | 200mm | 50mm | 11mm | 105 x 80/75mm | Enquire Now |
| 4687ITP250P63-FLAT | 800kg | 1600kg | 137 x 105mm | 250mm | 55mm | 11mm | 105 x 80/75mm | Enquire Now |
