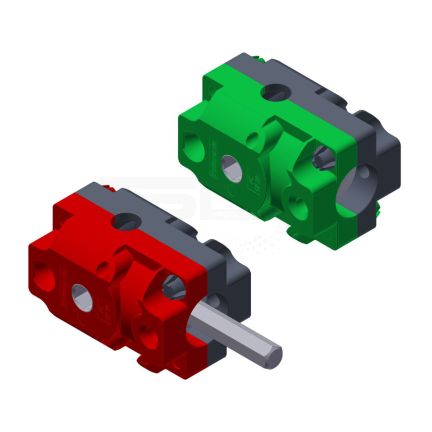

Deflection gear 3045
Product Description
Gear for the deflection of a rotation by 90° degree.
Special features
Ratio 1:1 or 2:1
Synthetic gear housing
Case-hardened steel bevel wheels
Customer specific
The gear is available with an axis hex 6 mm with a customer specific length, as well as without axis.
| Product Code | Ratio | Input | Output | Number of bevel wheels | Housing material | Max. output torque | A | No. of Packs |
|---|---|---|---|---|---|---|---|---|
| 3045.00-3001 | 1 : 1 | hex 7 mm | hex 7 mm | 2 | synthetic | 6 Nm | - | Enquire Now |
| 3045.00-3002 | 2 : 1 | hex 7 mm | hex 7 mm | 2 | synthetic | 6 Nm | - | Enquire Now |
| 3045.00-V04AXXX | 1 : 1 | hex 7 mm | hex 7 mm | 2 | synthetic | 6 Nm | customer specific | Enquire Now |
