E Clips - Reinforced - SR-EI-RE-31
Product Description

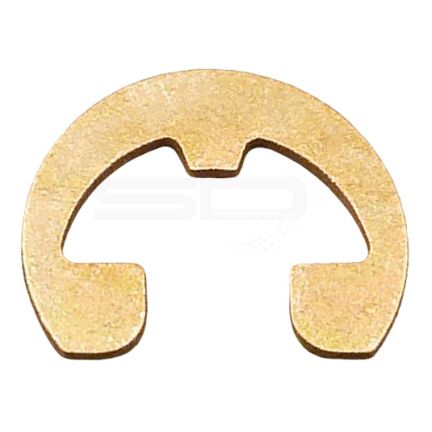

Radially Assembled, External Reinforced ‘E’
The SR-EI-RE retaining ring is a reinforced version of the E ring, which will accommodate higher thrust loadings and RPM. SR-EI-RE rings function in the same groove as regular E rings, so that you can change from one to the other without re-engineering the application.
For plated rings, add 0.002” to the listed maximum thickness. Maximum thickness will be a minimum of 0.0002” less than the listed groove width (W) minimum.
| Shaft Dia. (mm) Ds | Shaft Dia. (Ds DEC) | Shaft Dia. (Ds FRACT) | Groove Depth (d) | Groove Dia. (Dg and Tol.) | Groove Width (W and Tol.) | Ring Free Dia. (Df and Tol.) | Ring Thickness (T and Tol.) | Free O.D. (G Ref) | Installed in Groove (L2 Max) | Wt. Per 1000 pcs. |
|---|---|---|---|---|---|---|---|---|---|---|
| 7.9 | 0.312 | 5/16 | 0.031 | 0.25 (±0.003) | 0.029 (+0.003/-0.0) | 0.242 (±0.003) | 0.025 (±0.002) | 0.588 | 0.61 | 0.85 |
