E Clips - Reinforced - SR-EM-RE-SL-11
Product Description
Radially Assembled, External Reinforced ‘E’, ANSI Metric

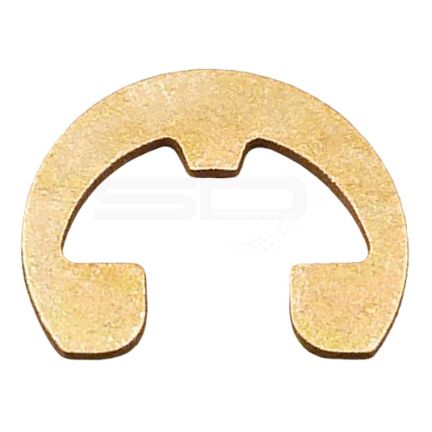

The SR-EM-RE-SL retaining ring is a reinforced version of the SR-EM-E ring, which will accommodate higher thrust loadings and RPM. SR-EM-RE-SL rings function in the same size grooves as regular E rings, so that you can change from one to the other without re-engineering the application.
*F.I.M. (Full Indicator Movement) – Maximum allowable deviation of concentricity between groove and shaft.
For plated rings, add 0.05 to the listed maximum thickness. Maximum thickness will be a minimum of 0.005 less than the listed groove width (W) minimum.
| Shaft Dia. (mm) Ds | Shaft Dia. (Ds DEC) | Groove Depth (d) | Groove Dia. (Dg and Tol.) | Groove Width (W and Tol.) | Ring Free Dia. (Df and Tol.) | Ring Thickness (T and Tol.) | Free O.D. (G Ref) | Groove Dia. (F.I.M.*) | Wt. Per 1000 pcs. | Released In Groove (L2) |
|---|---|---|---|---|---|---|---|---|---|---|
| 11 | 0.433 | 1.1 | 8.8 (-0.15) | 1 (+0.15) | 8.45 (±0.1) | 0.9 (±0.06) | 18.95 | 0.1 | 0.86 | 19.7 |
