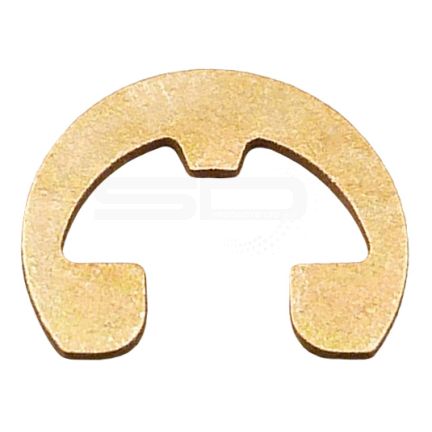

E Clips - Reinforced - SR-EM-RE-SL-4
Product Description
Radially Assembled, External Reinforced ‘E’, ANSI Metric
The SR-EM-RE-SL retaining ring is a reinforced version of the SR-EM-E ring, which will accommodate higher thrust loadings and RPM. SR-EM-RE-SL rings function in the same size grooves as regular E rings, so that you can change from one to the other without re-engineering the application.
*F.I.M. (Full Indicator Movement) – Maximum allowable deviation of concentricity between groove and shaft.
For plated rings, add 0.05 to the listed maximum thickness. Maximum thickness will be a minimum of 0.005 less than the listed groove width (W) minimum.
| Shaft Dia. (mm) Ds | Shaft Dia. (Ds DEC) | Groove Depth (d) | Groove Dia. (Dg and Tol.) | Groove Width (W and Tol.) | Ring Free Dia. (Df and Tol.) | Ring Thickness (T and Tol.) | Free O.D. (G Ref) | Groove Dia. (F.I.M.*) | Wt. Per 1000 pcs. | Released In Groove (L2) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 0.157 | 0.5 | 3 (-0.05) | 0.7 (+0.15) | 2.9 (+0.05/-0.08) | 0.6 (±0.06) | 8.5 | 0.05 | 0.14 | 8.9 |
