Edge Clips - D Type
Product Description

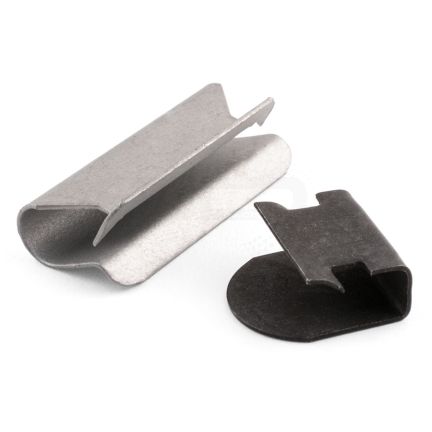

D Type Edge Clips are designed to secure fabrics, plastics and fibreboard to metal panels ideal for quick assembly, barbs on one side of the Edge Clip retain it in place whilst the other side is flat with a neat flush finish.
Material
Austempered, Carbon Steel
Finish
Phosphate Paint Black. Different finishes available on request
Specials
If the Edge Clip you are looking for is not shown, please enquire to the sales office with the dimensions and the quantity. We stock a wide variety of specials and we can manufacture different sizes if required.
| Product Code | P | L1 | W | L2 | Pricei | Stock | Pack Sizei | No. of Packs |
|---|---|---|---|---|---|---|---|---|
| ECD-1302-BLK | 0.6 - 1.2 | 8.7 | 12.7 | - | £6.99 | 63889 |
100
|
|
| ECD-1321-BLK | 0.9 - 1.6 | 9.1 | 12.7 | 8.6 | £7.49 | i |
100
|
Enquire Now |
| ECD-379-BLK | 1.0 - 3.6 | 11 | 12.7 | - | £7.49 | 43245 |
100
|
|
| ECD-1345 | 1.5 - 2 | 11 | 15 | 13 | i | i | - | Enquire Now |
| ECD-1346 | 1.75 - 2 | 8 | 12.5 | 8.5 | i | i | - | Enquire Now |
| ECD-1347 | 1.75 - 2 | 9.1 | 14 | 14.8 | i | i | - | Enquire Now |
| ECD-1436-BLK | 1.8 - 2.4 | 8.7 | 12.7 | - | £6.99 | 800 |
100
|
|
| ECD-1462-ZP | 1.8 - 3.2 | 12.7 | 12.7 | - | £6.99 | i |
100
|
Enquire Now |
| ECD-1437 | 2 - 2.5 | 7.8 | 12.5 | 8.2 | i | i | - | Enquire Now |
| ECD-1522-BLK | 2.6 - 2.8 | 7.9 | 12.7 | - | £10.00 | 98758 |
100
|
|
| ECD-4120 | 2.8 - 3.3 | 8.7 | 12.7 | 8.7 | i | i | - | Enquire Now |
| ECD-2281-SIL | 3 - 4.5 | 12 | 25 | 12 | £13.75 | 1500 |
50
|
|
| ECD-2280-BLK | 3.4 - 4.0 | 8.7 | 12.7 | 12.7 | £10.00 | i |
100
|
Enquire Now |
| ECD-2468-BLK | 4.2 - 5.1 | 10.3 | 12.7 | - | £10.00 | 5893 |
100
|
