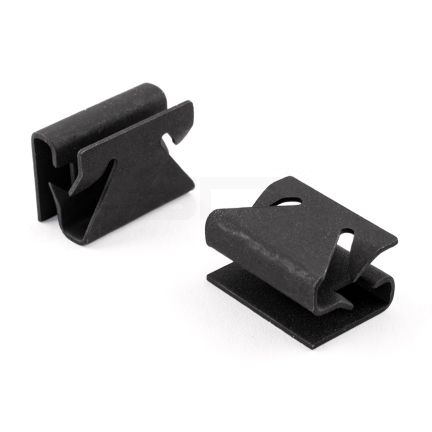

Edge Clips - S Type
Product Description
S Type Edge Clips are designed to hold two panels at 180 degrees to each other ideally suited for metal, fiberboard and rigid plastic sheet material.
Material
Austempered, Carbon Steel
Finish
Phosphate Paint Black, Different finishes available on request.
Specials
If the Edge Clip you are looking for is not shown , please enquire to the sales office with the dimensions and quantity. We stock a wide variety of specials and we can manufacture different sizes if you require.
Standard
| Product Code | P1 | P2 | L1 | L2 | L3 | W | Pricei | Stock | Pack Sizei | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|---|
| ECS-2851-ZP | 0.4 - 0.5 | 0.4 - 0.5 | 11.9 | 6.5 | 9.6 | 12.6 | £6.99 | 72610 |
100
|
|
| ECS-2112-BLK | 0.5 - 1.2 | 0.5 - 1.2 | 8.5 | 8.3 | 7.9 | 12.7 | £11.00 | 62157 |
100
|
|
| ECS-2212 | 0.5 - 1.5 | 0.8 - 1.5 | 14 | - | 10 | 12.75 | i | i | - | Enquire Now |
| ECS-2340-BLK | 0.6 - 1.2 | 0.6 - 1.2 | 11.2 | 11.2 | 11.2 | 12.7 | £11.50 | i |
100
|
Enquire Now |
| ECS-2210-BLK | 0.7 - 1.2 | 0.7 - 1.2 | 9.9 | 9.9 | 9.9 | 12.7 | £7.49 | i |
100
|
Enquire Now |
| ECS-2869 | 0.7 - 2 | 0.8 - 1 | 10 | - | 10 | 13 | i | i | - | Enquire Now |
| ECS-2868-ALT | 0.8 - 1.2 | 1.2 - 1.6 | 12 | 1.8 | 11.7 | 12.7 | £10.10 | 8202 |
100
|
|
| ECS-2211 | 0.8 - 1.4 | 2 - 3 | 9 | - | 9 | 13 | i | i | - | Enquire Now |
| ECS-2213 | 0.8 - 1.7 | 0.8 - 1.7 | 9.2 | - | 9.2 | 13 | i | i | - | Enquire Now |
| ECS-2868-BLK | 0.9 - 1.9 | 1.8 - 2.9 | 11.1 | 11.1 | 11.1 | 12.7 | £10.50 | i |
100
|
Enquire Now |
| ECS-1919-BLK | 1 - 2 | 1.4 - 2 | 8.7 | 8.7 | 8.7 | 12.7 | £10.00 | 35312 |
100
|
|
| ECS-1988-ZP | 1.5 - 2 | 1.5 - 2 | 9.5 | 10.7 | 9 | 38 | £11.50 | i |
100
|
Enquire Now |
| ECS-1019 | 1.9 - 2.1 | 1.9 - 2.1 | 11 | 10 | 9.5 | 12.75 | £11.75 | 549 |
50
|
|
| ECS-1026 | 2 - 2.3 | 2 - 2.3 | 10 | - | 9 | 13 | i | i | - | Enquire Now |
| SEC-9246 | 5.5 | 2 - 2.4 | 9.4 | 8.9 | 8.9 | 12.9 | £10.50 | 43900 |
100
|
|
| ECS-1028-BLK | 2.2 - 3.1 | 2.2 - 3.1 | 12 | - | 10 | 9.52 | £10.00 | i |
50
|
Enquire Now |
Removable
| Product Code | P1 | P2 | L1 | L2 | L3 | W | Pricei | Stock | Pack Sizei | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|---|
| ECS-3800-1-BLK | 0.6 - 3.8 | 0.5 - 1.6 | 11 | 11 | 13 | 12 | £11.50 | 7478 |
100
|
