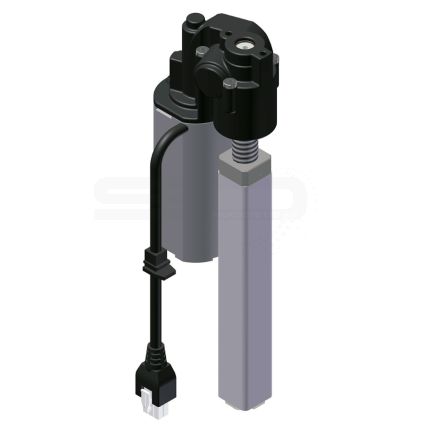

Electric inline drive 3120
Product Description
Motorized solution for the individual sit-stand workplace. Stepless height adjustment to customer specific stroke.
Special features
A slender design allows to integrate the complete inline actuator into the tube of a table leg.
Simple mounting
Integrated position measuring system
Single telescopic function
Customer specific
As a result of the modular design it is possible to meet spezial customer requirements even for small quantities. The actuator can be supplied with various spindle lengths and different spindle pitches.
Caution
Please take into account that depending on the spindle pitch, the system could back-drive.
* in combination with LogicData control box Compact-3
** further types of spindles on request
| Product Code | Motor | Sensor/Power supply | Duty cycle | Idle running speed | Stroke max. | Type of spindle | Max. drive torque | Max. lifting force | Movement speed | Protection class | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3120.00-V01EXXXHXXX | DC Motor 24 V | Hall/5 V DC/0.3 A | 20% (at 5 min.) | 100 rpm (24 V) 150 rpm * | retracted height -111 mm | SG14x16P4 RH ** | 3 Nm | 800 N | 43 mm/s | IP30 | Enquire Now |
| 3120.00-V02EXXXHXXX | DC Motor 24 V | Hall/5 V DC/0.3 A | 20% (at 5 min.) | 100 rpm (24 V) 150 rpm * | retracted height -109 mm | SG14x16P4 RH ** | 3 Nm | 800 N | 43 mm/s | IP30 | Enquire Now |
