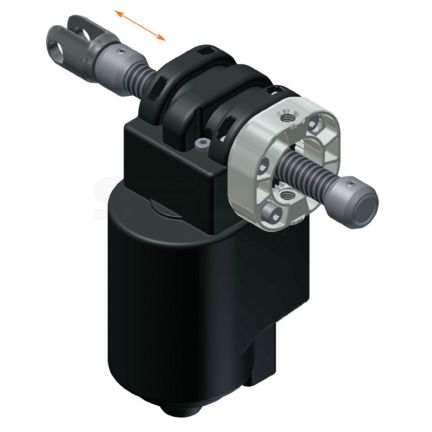

Electric linear actuator with spindle 4643
Product Description
Powerful motorized drive unit with push-pull spindle and electromechanical end-switches. Stroke to customer demands.
Special features
By simplified control function, an additional distance measuring system is not required.
Very powerful
For very high holding torques
Simple installation
Two electromechanical end-switches.
Customer specific
Compact actuator for customer specific applications. Can be adapted easily by fork crown and mounting adapter flange.
* in combination with LogicData control box Compact-3
| Product Code | Motor | Sensor/Power supply | Duty cycle | Type of spindle | Max. pressure force | Movement speed | Protection class | No. of Packs |
|---|---|---|---|---|---|---|---|---|
| 4643.00-V01HXXXX | DC Motor 18 V | Hall/5 V DC/0.3 A | 20% (at 5 min.) | Tr14x3 RH | 3000 N | 4 mm/s * | IP30 | Enquire Now |
