Electric linear drive with spindle 4778
Product Description

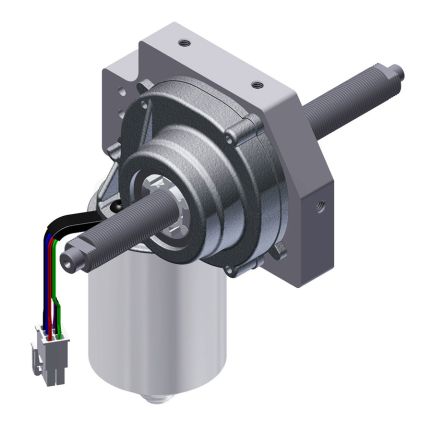

Direct current motor with worm gear and through-going not rotating spindle for push and pull movements. Depending on push or pull force the correct assembly situation should be noted.
Special features
Motor drive with integrated position measuring system.
Customer specific
Compact motor drive for customer specific applications. Spindle pitch can be modified to customer requirements.
Caution
Please take into account that depending on the spindle pitch, the system could back-drive.
* in combination with LogicData control box Compact-3
| Product Code | Motor | Sensor/Power supply | Duty cycle | Max. drive torque | Max. compression/pull | Max. pressure force | Movement speed | Protection class | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|
| 4778.00-0002 | DC Motor 24 V | Hall/5 V DC/0.3 A | 20% (at 5 min.) | 4.5 Nm | SG16x8P4 RH | 1900 N | 24 mm/s* | IP30 | Enquire Now |
| 4778.00-0004 | DC Motor 24 V | Hall/5 V DC/0.3 A | 20% (at 5 min.) | 4.5 Nm | Tr16x4 RH | 3700 N | 12 mm/s* | IP30 | Enquire Now |
| 4778.00-0006 | DC Motor 24 V | Hall/5 V DC/0.3 A | 20% (at 5 min.) | 4.5 Nm | SG14x16P4 RH | 1000 N | 45 mm/s* | IP30 | Enquire Now |
