Fir Tree Trim Clips
Product Description

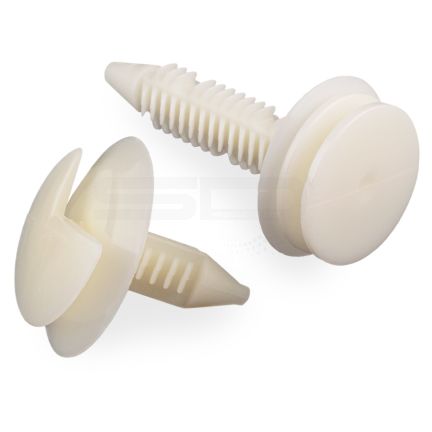

These fir tree retainers are designed to easily fit into a trim panel, then pushed into a base panel.
Material
Nylon
Standard
| Product Code | Hole | P1 | P2 | D1 | D2 | H1 | H2 | L1 | L2 | Finish | Pricei | Stock | Pack Sizei | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AP-TPC-3420 | 7.2 | 1.4 - 12.7 | 2.8 | 18.1 | B 13.8 x 11.7 | 1.2 | 1.4 | 21.5 | 15.9 | Natural | £11.00 | 4800 |
100
|
|
| AP-TPC-2740 | 7.2 | 2.6 - 17.6 | 2.1 | 19 | B 17.3 x 16 | 1 | 1.3 | 29.2 | 24.7 | Natural | £10.00 | 15100 |
100
|
|
| AP-TPC-2210 | 7.4 | 1.7 - 12 | 1.9 | 24.2 | B 23.7 x 17.6 | 1.2 | 1.6 | 23 | 18.5 | Natural | £10.00 | 700 |
100
|
|
| AP-TPC-3170-NAT | 7.5 | 1.8 - 19.7 | 2.2 | 24.3 | B 23.5 x 19.1 | 0.9 | 1.1 | 23.9 | 19.7 | Natural | £11.00 | 300 |
100
|
|
| AP-TPC-3270-WHT | 7.5 | 2.5 - 21.6 | 0.5 | 19.5 | A 13.2 | 1.3 | 1.6 | 35 | 31.8 | White | £10.00 | 200 |
100
|
|
| AP-TPC-3240-NAT | 7.5 | 3.1 - 11.7 | 1.6 | 24 | B 23 x 16.7 | 0.9 | 1.2 | 30.9 | 26.6 | Natural | £10.00 | 300 |
100
|
|
| AP-TPC-2310-NAT | 7.6 | 2 - 22.3 | 2.6 | 24.4 | B 23.5 x 19 | 1.2 | 1.2 | 38.7 | 33.9 | Natural | £10.00 | 500 |
100
|
|
| AP-TPC-3190-NAT | 7.6 | 2 -20.5 | 2.3 | 19.4 | A 13.2 | 0.8 | 1.3 | 30.6 | 25.9 | Natural | £10.00 | 300 |
100
|
|
| AP-TPC-2240-WHT | 7.6 | 3.2 - 14.6 | 3 | 23.9 | B 23.8 x 17.7 | 1.4 | 1.1 | 29.8 | 24.3 | White | £10.50 | 200 |
100
|
|
| AP-TPC-3130 | 7.7 | 1.3 - 13.2 | 2.2 | 20.2 | A 13.2 | 1.2 | 1.6 | 24.2 | 19.1 | Natural | £10.00 | 500 |
100
|
|
| AP-TPC-2320-NAT | 7.7 | 2.1 - 15.3 | 2.3 | 25.1 | A 13 | 1.1 | 1.2 | 31 | 26.2 | Natural | £10.00 | 99 |
100
|
|
| AP-TPC-3850-NAT | 7.8 x 8 | 1.2 | 3.1 | 16 | A 13.2 | 2 | 1 | 21.1 | 15 | Natural | £11.00 | 300 |
100
|
|
| AP-TPC-0350-WHT | 8.6 | 1 - 8.5 | 2.3 | 19.2 | B 14.7 x 11.9 | 2.7 | 1.2 | 22.1 | 17.5 | White | £12.50 | 1116 |
100
|
|
| AP-TPC-3650-NAT | 8.6 | 1.6 - 10.5 | 3.1 | 16.1 | B 13.7 x 11.8 | 1.1 | 1.4 | 22.2 | 16.9 | Natural | £10.00 | 300 |
100
|
|
| AP-TPC-3330-NAT | 8.6 | 1.8 - 9.7 | 3 | 18.4 | A 13 | 0.5 | 1 | 21.9 | 17.2 | Natural | £10.00 | 1300 |
100
|
|
| AP-TPC-2840 | 9.1 | 1.8 - 5.4 | 3 | 18.3 | B 13.7 x 13.2 | 1.4 | 1.2 | 22.8 | 17.7 | Natural | £10.00 | 200 |
100
|
Stand-Off
| Product Code | Hole | P1 | P2 | D1 | D2 | H1 | H2 | L1 | L2 | Finish | Pricei | Stock | Pack Sizei | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AP-TPC-3320-NAT | 6.6 | 1.5 - 24.9 | 2.5 | 20.6 | A 18.2 | 1.6 | 1.2 | 39.9 | 34.4 | Natural | £13.00 | 300 |
100
|
|
| AP-TPC-3660-NAT | 7.3 | 1 - 13.1 | 3.3 | 19.2 | B 14.1 x 12.6 | 1.3 | 0.9 | 24.4 | 20 | Natural | £10.50 | 300 |
100
|
|
| AP-TPC-16800-WHT | 7.3 | 1.5 - 8.9 | 2.1 | 19.1 | B 16.5 | 3.4 | 0.9 | 21.1 | 14.5 | White | £11.50 | 300 |
100
|
|
| AP-TPC-3150-NAT | 7.6 | 1.7 - 10.5 | 2.9 | 17.3 x 15.1 | A 12.3 x 7.2 | 3.3 | 1.2 | 27.6 | 20.4 | Natural | £10.00 | 300 |
100
|
|
| AP-TPC-3360-NAT | 7.6 | 2 - 9.8 | 2.8 | 20.4 | A 18.3 | 3.4 | 1.5 | 28.2 | 20.2 | Natural | £15.00 | 300 |
100
|
|
| AP-TPC-3290-WHT | 7.7 | 1.5 - 11.2 | 2.8 | 20.4 | A 18.3 | 3.2 | 1.6 | 28.2 | 20.6 | White | £10.50 | 300 |
100
|
|
| AP-TPC-1730-WHT | 7.7 | 1.5 - 13.8 | 2.8 | 20.3 | A 18.1 | 1.5 | 1.3 | 30.3 | 24.2 | White | £14.00 | 300 |
100
|
|
| AP-TPC-3180-NAT | 7.7 | 1.7 - 12 | 2.4 | 22.9 - 19.3 | A 14.9 x 7.2 | 2.5 | 1.2 | 27.9 | 21.4 | Natural | £10.00 | 300 |
100
|
|
| AP-TPC-3140-BLK | 7.7 | 2.5 - 12.7 | 2.3 | 12.9 | A 12 x 6.3 | 2.3 | 1.4 | 28 | 21.5 | Black | £10.00 | 300 |
100
|
|
| AP-TPC-3160-NAT | 8.1 | 1.5 - 18.5 | 2.7 | 20.3 | A 18.1 | 2.6 | 1.7 | 31.5 | 24.2 | Natural | £10.50 | 300 |
100
|
