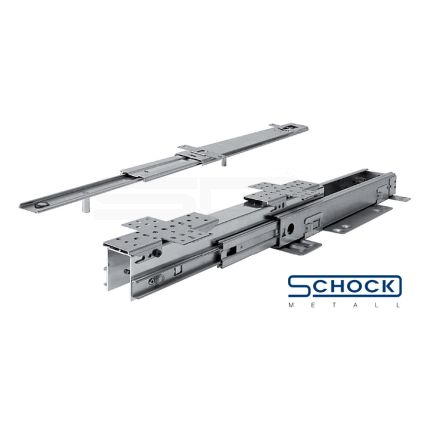

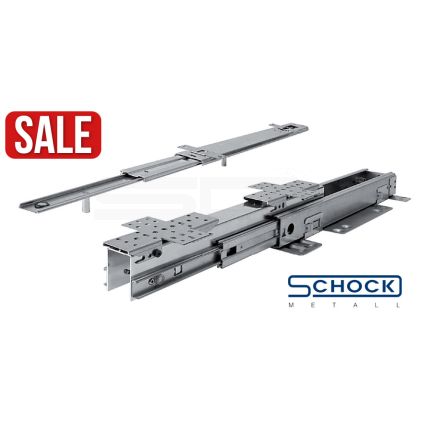

Full Extension Pull-Out Larder or Pantry Slide
Product Description
Load capacity up to 120 kg.
Bottom and top guided.
Mounting brackets with front adjustment.
50 mm self-closing device with damper in both bottom and top slide unit.
Packed per set - ready to install.
Materials and finishes
Slide rails: hot-dip galvanized steel
Ball cages: pre-zinced steel
Balls: hardened carbon steel
Temperature range
Working temperature +10°C to +40°C
Storage and transport temperature -20°C up to max. +60°C
Pack Size
1 pack contains 1 pair of slides
| Product Code | Length | Travel | Load Capacity Per Pair (kg) (at 100.000 cycles) | A | B | C | D | E | F | Weight (kg / pair) | Drawer Depth | Pricei | Stock | Pack Sizei | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 059-11099 | 480 | 433 | 120 | 320 | 352 | 288 | 140 | 288 | 140 | 6.63 | 120 | £49.00 | 44 |
