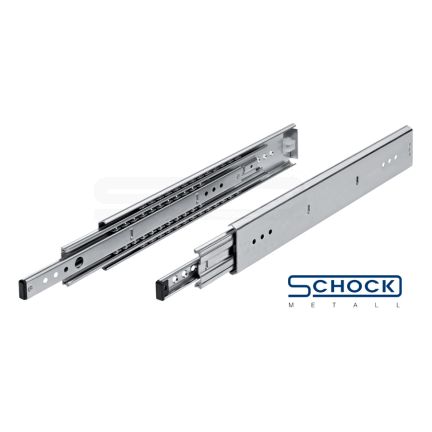

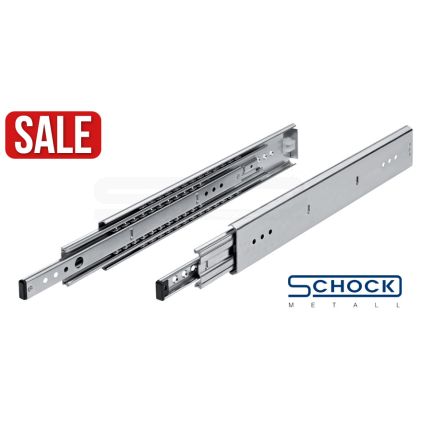

Full Extension Series 070
Product Description
Load capacity up to 200 kg.
Hold-in detent.
Materials and finishes
Slide rails: zinc electroplated and blue passivated steel
Ball cages: pre-zinced steel
Balls: hardened carbon steel
Temperature range
Working temperature +10°C to +40°C
Storage and transport temperature -20°C up to max. +80°C
Pack Size
1 pack contains 1 pair of slides
| Product Code | Length | Travel | Horizontal Load Capacity Per Pair (kg) (at 100.000 cycles) | Load Capacity Per Pair (kg) (at 100.000 cycles) | A | B | C | D | Weight (kg / pair) | Pricei | Stock | Pack Sizei | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 070-11800 | 400 | 400 | 105 | 180 | - | - | - | 288 | 3.1 | £33.00 | 49 |
1
|
|
| 070-11801 | 450 | 450 | 115 | 190 | - | - | 160 | 320 | 3.45 | £35.00 | 50 |
1
|
|
| 070-11802 | 500 | 500 | 130 | 195 | - | - | 192 | 384 | 3.83 | £37.50 | 38 |
1
|
|
| 070-11803 | 550 | 550 | 130 | 200 | - | - | 224 | 448 | 4.22 | £40.50 | 51 |
1
|
|
| 070-11806 | 700 | 700 | 130 | 175 | - | 192 | 384 | 576 | 5.4 | £58.90 | 48 |
1
|
