High Torque Jubilee® Clips - 304 / A2 Stainless Steel
Product Description

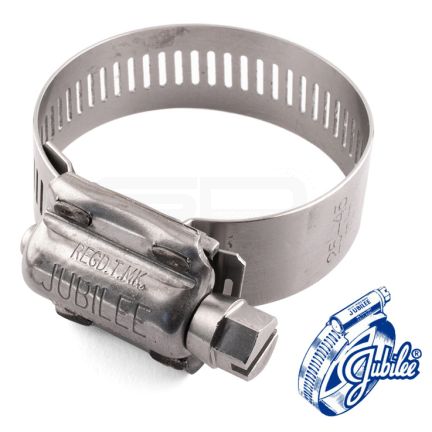

Jubilee® High Torque clips are made of all stainless steel, with a two part housing and cut through band, keeping the band straight at the point of engagement and fully engaging all of the screw thread; giving a superior tightening torque. Although not suitable for use on soft hoses, where the high forces and perforated band may cut into the hose, they are ideal where a high clamping force is required and with a flexible band material they can achieve a high level of friction even against a smooth surface such as a metal pole.
| Product Code | Adjustment (mm) | Recommended Torque (Nm) | Maximum Torque (Nm) | Maximum Pressure (Psi) | Pricei | Stock | Pack Sizei | No. of Packs |
|---|---|---|---|---|---|---|---|---|
| JCHT-A2-35 | 20 - 35 | 11.9 | 17 | 304.5 | £32.02 | 30 |
5
|
|
| JCHT-A2-40 | 25 - 40 | 11.9 | 17 | 304.5 | £32.29 | 10 |
5
|
|
| JCHT-A2-45 | 25 - 45 | 11.9 | 17 | 304.5 | £32.67 | 10 |
5
|
|
| JCHT-A2-50 | 30 - 50 | 11.9 | 17 | 304.5 | £33.04 | 10 |
5
|
|
| JCHT-A2-70 | 40 - 70 | 11.9 | 17 | 153 | £34.91 | 25 |
5
|
|
| JCHT-A2-80 | 60 - 80 | 11.9 | 17 | 153 | £36.05 | 30 |
5
|
|
| JCHT-A2-95 | 70 - 95 | 11.9 | 17 | 153 | £37.17 | 20 |
5
|
|
| JCHT-A2-100 | 80 - 100 | 11.9 | 17 | 66 | £38.29 | 10 |
5
|
|
| JCHT-A2-120 | 90 - 120 | 11.9 | 17 | 66 | £40.18 | 10 |
5
|
|
| JCHT-A2-140 | 110 - 140 | 11.9 | 17 | 66 | £42.07 | 5 |
5
|
|
| JCHT-A2-160 | 130 - 160 | 11.9 | 17 | 66 | £43.54 | 5 |
5
|
|
| JCHT-A2-180 | 150 - 180 | 11.9 | 17 | 30 | £45.50 | 10 |
5
|
|
| JCHT-A2-200 | 170 - 200 | 11.9 | 17 | 30 | £48.30 | 5 |
5
|
|
| JCHT-A2-220 | 190 - 220 | 11.9 | 17 | 30 | £50.26 | 10 |
5
|
|
| JCHT-A2-240 | 210 - 240 | 11.9 | 17 | 30 | £52.43 | 5 |
5
|
|
| JCHT-A2-260 | 230 - 260 | 11.9 | 17 | 30 | £54.18 | 5 |
5
|
|
| JCHT-A2-280 | 250 - 280 | 11.9 | 17 | 30 | £56.18 | 5 |
5
|
|
| JCHT-A2-300 | 270 - 300 | 11.9 | 17 | 30 | £58.14 | 15 |
5
|
|
| JCHT-A2-320 | 290 - 320 | 11.9 | 17 | 30 | £60.10 | 10 |
5
|
|
| JCHT-A2-340 | 310 - 340 | 11.9 | 17 | - | £62.06 | 5 |
5
|
|
| JCHT-A2-360 | 330 - 360 | 11.9 | 17 | - | £64.05 | 10 |
5
|
|
| JCHT-A2-380 | 350 - 380 | 11.9 | 17 | - | £66.01 | 5 |
5
|
|
| JCHT-A2-400 | 370 - 400 | 11.9 | 17 | - | £67.97 | 10 |
5
|
|
| JCHT-A2-420 | 390 - 420 | 11.9 | 17 | - | £69.93 | 5 |
5
|
|
| JCHT-A2-440 | 410 - 440 | 11.9 | 17 | - | £71.92 | 5 |
5
|
|
| JCHT-A2-460 | 430 - 460 | 11.9 | 17 | - | £73.88 | 5 |
5
|
|
| JCHT-A2-480 | 450 - 480 | 11.9 | 17 | - | £75.84 | 10 |
5
|
|
| JCHT-A2-500 | 470 - 500 | 11.9 | 17 | - | £77.80 | 5 |
5
|
|
| JCHT-A2-520 | 490 - 520 | 11.9 | 17 | - | £79.76 | 10 |
5
|
