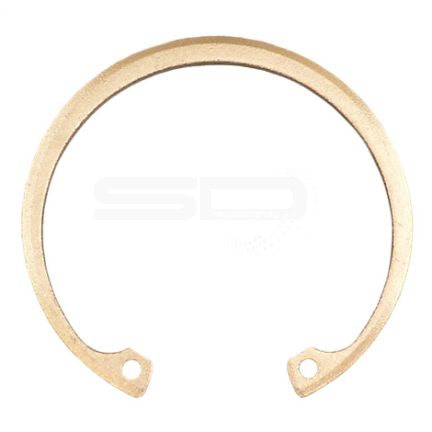

HR-IM Shaft Rings - HR-IM-29
Product Description
Axially Assembled, Internal, Metric
Once installed in the groove of a housing/bore, the portion of the ring protruding from the groove (also called a “shoulder”) holds an assembly in place.
*The radius "R" on the load side must not exceed 0.1T.
| Housing Dia. (mm) | Ring Thickness (T and Tol.) | Groove Dia. (Tg and Tol) | Groove Width (W Min) | Groove Depth (d) | Ring Free Diameter (Df and Tol) | Edge Margin (Y Min) | Thrust Load Ring (Pr kN) | Thrust Load Groove (Pg kN) | R/Ch Max | Max Load w/R/Ch Max. (P'r kN) |
|---|---|---|---|---|---|---|---|---|---|---|
| 29 | 1.2 (-0.06) | 30.4 (+0.25) | 1.3 | 0.7 | 31.1 (+0.5/-0.25) | 2.1 | 13.6 | 10.9 | 1 | 4.6 |
