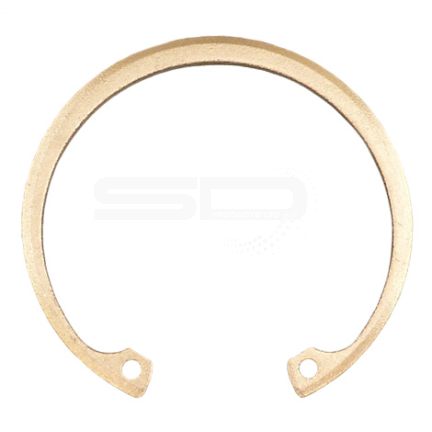

HR-IM Shaft Rings - HR-IM-750**
Product Description
Axially Assembled, Internal, Metric
Once installed in the groove of a housing/bore, the portion of the ring protruding from the groove (also called a “shoulder”) holds an assembly in place.
*The radius "R" on the load side must not exceed 0.1T.
**This parts is made with a constant section width (no taper).
| Housing Dia. (mm) | Ring Thickness (T and Tol.) | Groove Dia. (Tg and Tol) | Groove Width (W Min) | Groove Depth (d) | Ring Free Diameter (Df and Tol) | Edge Margin (Y Min) | Thrust Load Ring (Pr kN) | Thrust Load Groove (Pg kN) | R/Ch Max | Max Load w/R/Ch Max. (P'r kN) |
|---|---|---|---|---|---|---|---|---|---|---|
| 750 | 9 (-0.2) | 768 (+1) | 9.3 | 9 | 785 (+4/-2) | 27 | 3566 | 3566 | 7 | 196 |
