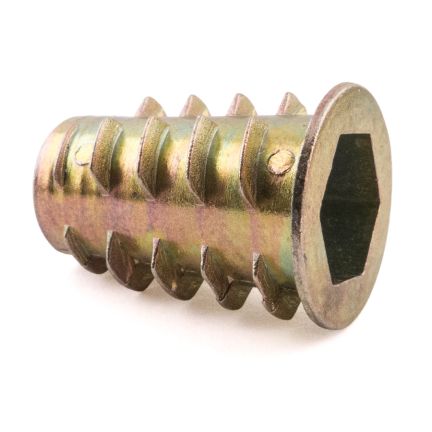

Insert Nuts - D Type - ID-6025-YZP
Product Description
D-Type Insert Nuts (D Nuts) provide a strong permanent thread for wood. They are installed by simply screwing the self tapping body into the material. The unique external thread ensures strong resistance against pull out and the flanged head prevents splitting of the surfaces and driving the Insert in too far.
Material
Zinc Alloy Die Cast
Finish
Zinc and Yellow
Specials
If the D Type Insert Nuts that you are looking for are not shown, then please enquire to our sales team with the dimensions and the quantity. We stock a wide range of specials and can manufacture different sizes if required.
Thread | Hole Size | D1 | D2 | D3 | H | L | Finish |
---|---|---|---|---|---|---|---|
M6 | 8.7 - 9.1 | 12.5 | 11.96 | 8 | 6 | 25 | Yellow zinc plated |
Special Price
£13.81
Regular Price
£13.81
Insert Nuts - D Type - ID-6025-YZP is available to buy in increments of 100
