Insert Nuts - E Type
Product Description

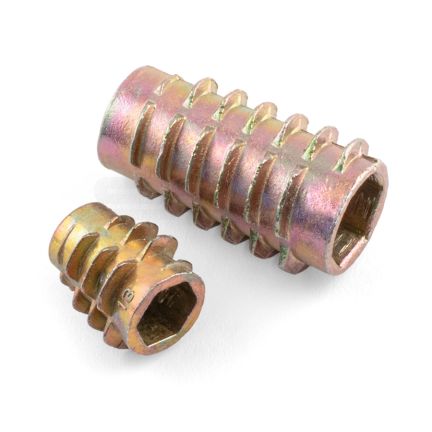

E-Type Insert Nuts provide a strong permanent thread for wood. They are installed by simply screwing the self tapping body into the material. The unique external thread ensures strong resistance from pull out. The E-Type has no flange and can be set below the surface of the material or on curved surfaces.
Material
Zinc Alloy Die Cast
Finish
Zinc and Yellow
Specials
If the E-Type Insert that you are looking for is not shown then please enquire to our sales office with the dimensions and the quantity. We stock a wide range of specials and can manufacture different sizes if required.
| Product Code | Thread | Hole Size | D2 | D3 | H | L | L1 | Finish | Pricei | Stock | Pack Sizei | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IE-4010-BZP | M4 | 5.6 - 6 | 7.3 | 5.5 | 4 | 10 | 3.4 | Bright zinc plated | £10.55 | 41794 |
100
|
|
| IE-4010-YZP | M4 | 5.6 - 6 | 7.3 | 5.5 | 4 | 10 | 3.4 | Yellow zinc plated | £10.75 | 62833 |
100
|
|
| IE-5013-ZP | M5 | 7.5 - 7.9 | 10.9 | 6.7 | 5 | 13 | 3.4 | Zinc plated | £13.39 | 18686 |
100
|
|
| IE-6010-BZP | M6 | 8.7 - 9.1 | 12 | 7.5 | 6 | 10 | 4.9 | Bright zinc plated | £15.23 | 25153 |
100
|
|
| IE-6013-BZP | M6 | 8.7 - 9.1 | 11.5 | 7.5 | 6 | 13 | 3.4 | Bright zinc plated | £10.97 | 4310 |
100
|
|
| IE-6013-YZP | M6 | 8.7 - 9.1 | 11.5 | 7.5 | 6 | 13 | 3.4 | Yellow zinc plated | £11.64 | 21400 |
100
|
|
| IE-6020-BZP | M6 | 8.7 - 9.1 | 11.7 | 7.7 | 6 | 20 | 3.6 | Bright zinc plated | £11.47 | 45284 |
100
|
|
| IE-6020-YZP | M6 | 8.7 - 9.1 | 11.7 | 7.7 | 6 | 20 | 3.6 | Yellow zinc plated | £13.90 | 38593 |
100
|
|
| IE-8013-YZP | M8 | 11.1 - 11.5 | 14.2 | 9.5 | 8 | 13 | 3.4 | Yellow zinc plated | £14.28 | 16019 |
100
|
|
| IE-8020-YZP | M8 | 11.1 - 11.5 | 14.3 | 9.5 | 8 | 20 | 4.2 | Yellow zinc plated | £15.82 | 20953 |
100
|
|
| IE-8025-YZP | M8 | 11.1 - 11.5 | 13.8 | 8.8 | 8 | 23.9 | - | Yellow zinc plated | £16.67 | i |
100
|
Enquire Now |
