Insert Nuts - E Type - IE-5013-ZP
Product Description

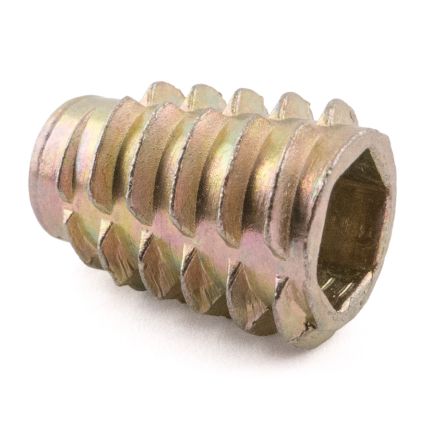

E-Type Insert Nuts provide a strong permanent thread for wood. They are installed by simply screwing the self tapping body into the material. The unique external thread ensures strong resistance from pull out. The E-Type has no flange and can be set below the surface of the material or on curved surfaces.
Material
Zinc Alloy Die Cast
Finish
Zinc and Yellow
Specials
If the E-Type Insert that you are looking for is not shown then please enquire to our sales office with the dimensions and the quantity. We stock a wide range of specials and can manufacture different sizes if required.
| Thread | Hole Size | D2 | D3 | H | L | L1 | Finish |
|---|---|---|---|---|---|---|---|
| M5 | 7.5 - 7.9 | 10.9 | 6.7 | 5 | 13 | 3.4 | Zinc plated |
Special Price
£13.39
Regular Price
£13.39
Insert Nuts - E Type - IE-5013-ZP is available to buy in increments of 100
