Insert Nuts - E Type - IE-6010-BZP
Product Description

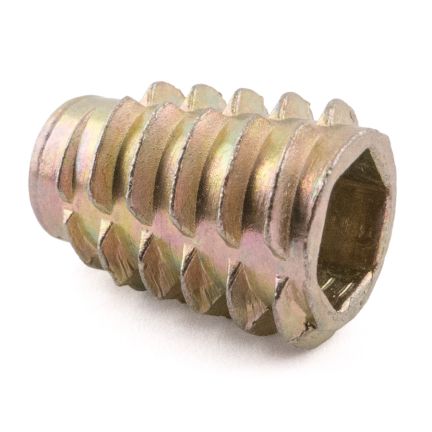

E-Type Insert Nuts provide a strong permanent thread for wood. They are installed by simply screwing the self tapping body into the material. The unique external thread ensures strong resistance from pull out. The E-Type has no flange and can be set below the surface of the material or on curved surfaces.
Material
Zinc Alloy Die Cast
Finish
Zinc and Yellow
Specials
If the E-Type Insert that you are looking for is not shown then please enquire to our sales office with the dimensions and the quantity. We stock a wide range of specials and can manufacture different sizes if required.
| Thread | Hole Size | D2 | D3 | H | L | L1 | Finish |
|---|---|---|---|---|---|---|---|
| M6 | 8.7 - 9.1 | 12 | 7.5 | 6 | 10 | 4.9 | Bright zinc plated |
Special Price
£15.23
Regular Price
£15.23
Insert Nuts - E Type - IE-6010-BZP is available to buy in increments of 100
