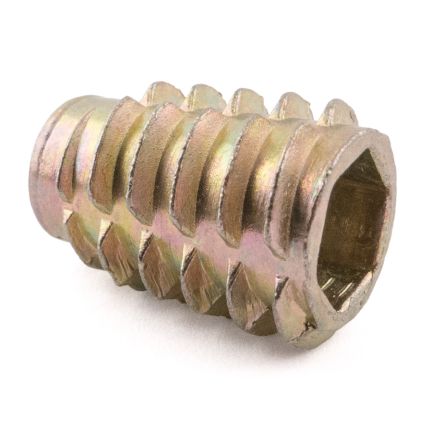

Insert Nuts - E Type - IE-8020-YZP
Product Description
E-Type Insert Nuts provide a strong permanent thread for wood. They are installed by simply screwing the self tapping body into the material. The unique external thread ensures strong resistance from pull out. The E-Type has no flange and can be set below the surface of the material or on curved surfaces.
Material
Zinc Alloy Die Cast
Finish
Zinc and Yellow
Specials
If the E-Type Insert that you are looking for is not shown then please enquire to our sales office with the dimensions and the quantity. We stock a wide range of specials and can manufacture different sizes if required.
| Thread | Hole Size | D2 | D3 | H | L | L1 | Finish |
|---|---|---|---|---|---|---|---|
| M8 | 11.1 - 11.5 | 14.3 | 9.5 | 8 | 20 | 4.2 | Yellow zinc plated |
Special Price
£15.82
Regular Price
£15.82
Insert Nuts - E Type - IE-8020-YZP is available to buy in increments of 100
