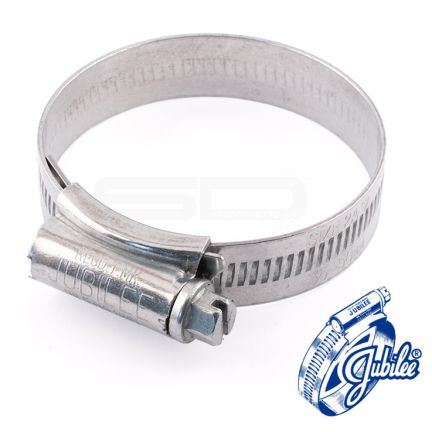

Jubilee® Clips - Mild Steel
Product Description
Original Range Jubilee® Clips in zinc protected mild steel are the most popular clips in our range. Ideally suited for most day to day requirements for joining hose in areas such as the automotive industry and the automotive aftermarket, agricultural applications, such as irrigation and farm machinery, pneumatic and hydraulic applications in the industrial sector, hardware/DIY applications and in construction.
| Product Code | Diameter (mm) | Band Width (mm) | Recommended Torque (Nm) | Maximum Torque (Nm) | Maximum Pressure (Psi) | Pricei | Stock | Pack Sizei | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|
| JC-MS-000 | 9.5 - 12 | 9.9 | 3.4 | 4.5 | 203 | £7.66 | 100 |
10
|
|
| JC-MS-M00 | 11 - 16 | 9.9 | 3.4 | 4.5 | 203 | £7.70 | 90 |
10
|
|
| JC-MS-00 | 13 - 20 | 9.9 | 3.4 | 4.5 | 203 | £7.78 | 400 |
10
|
|
| JC-MS-0 | 16 - 22 | 13 | 4.2 | 5.6 | 203 | £10.00 | 220 |
10
|
|
| JC-MS-0X | 18 - 25 | 13 | 4.2 | 5.6 | 203 | £10.00 | 200 |
10
|
|
| JC-MS-1A | 22 - 30 | 13 | 5.1 | 6.8 | 203 | £10.00 | 220 |
10
|
|
| JC-MS-1 | 25 - 35 | 13 | 5.1 | 6.8 | 102 | £10.00 | 400 |
10
|
|
| JC-MS-1X | 30 - 40 | 13 | 5.1 | 6.8 | 102 | £10.42 | 100 |
10
|
|
| JC-MS-1M | 32 - 45 | 13 | 5.1 | 6.8 | 102 | £10.72 | i |
10
|
Enquire Now |
| JC-MS-2A | 35 - 50 | 13 | 5.9 | 7.9 | 102 | £11.28 | 100 |
10
|
|
| JC-MS-2 | 40 - 55 | 13 | 5.9 | 7.9 | 102 | £11.67 | 120 |
10
|
|
| JC-MS-2X | 45 - 60 | 13 | 5.9 | 7.9 | 102 | £12.32 | 200 |
10
|
|
| JC-MS-3 | 55 - 70 | 13 | 6.7 | 9 | 102 | £13.47 | 150 |
10
|
|
| JC-MS-3X | 60 - 80 | 13 | 6.7 | 9 | 44 | £14.69 | i |
10
|
Enquire Now |
| JC-MS-4 | 70 - 90 | 13 | 6.7 | 9 | 44 | £15.64 | 108 |
10
|
|
| JC-MS-4X | 85 - 100 | 13 | 6.7 | 9 | 44 | £10.01 | 320 |
5
|
|
| JC-MS-5 | 90 - 120 | 13 | 6.7 | 9 | 44 | £11.42 | 70 |
5
|
|
| JC-MS-6 | 110 - 140 | 13 | 6.7 | 9 | 44 | £12.94 | 100 |
5
|
|
| JC-MS-6X | 120 - 150 | 13 | 6.7 | 9 | 18 | £13.74 | 160 |
5
|
|
| JC-MS-7 | 135 - 165 | 13 | 5.9 | 7.9 | 18 | £14.48 | 150 |
5
|
|
| JC-MS-7.5 | 158 - 190 | 13 | 5.9 | 7.9 | 18 | £15.56 | 105 |
5
|
|
| JC-MS-8.5 | 184 - 216 | 13 | 5.9 | 7.9 | 18 | £19.33 | 130 |
5
|
|
| JC-MS-9.5 | 210 - 242 | 13 | 5.9 | 7.9 | 18 | £21.05 | 100 |
5
|
|
| JC-MS-10.5 | 235 - 267 | 13 | 5.9 | 7.9 | 18 | £22.74 | 200 |
5
|
|
| JC-MS-11.5 | 260 - 292 | 13 | 5.9 | 7.9 | 18 | £24.68 | 60 |
5
|
|
| JC-MS-12.5 | 286 - 318 | 13 | 5.9 | 7.9 | 18 | £26.51 | 115 |
5
|
