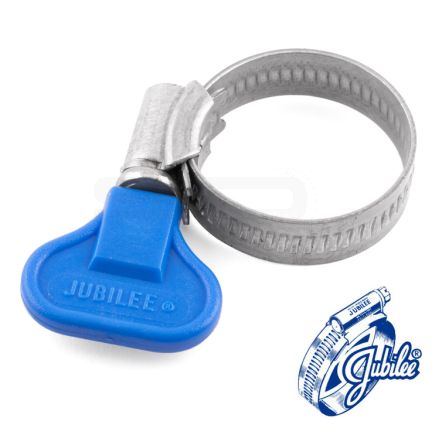

Jubilee® Wingspade Clips
Product Description
Based on Jubilee® Light Range Clips and suitable for hand fitting; Jubilee® Wingspade clips are supplied with a thumb screw, allowing easy torquing using just a thumb and forefinger. Suited to fittings that may need to be removed from time to time such as dust extraction units, or domestic hoses.
| Product Code | Adjustment (mm) | Band Width (mm) | Band Thickness (mm) | Recommended Torque (Nm) | Maximum Torque (Nm) | Maximum Pressure (Psi) | Pricei | Stock | Pack Sizei | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|---|
| JC-WS-0010 | 9.5 - 12 | 9.9 | 0.762 | 3.4 | 4.5 | 182 | £14.70 | 78 |
10
|
|
| JC-WS-0020 | 11 - 16 | 9.9 | 0.762 | 3.4 | 4.5 | 182 | £14.70 | 20 |
10
|
|
| JC-WS-0030 | 13 - 20 | 9.9 | 0.762 | 3.4 | 4.5 | 182 | £15.00 | 100 |
10
|
|
| JC-WS-0040 | 12 - 22 | 9.9 | 0.762 | 3.4 | 4.5 | 182 | £15.30 | 30 |
10
|
|
| JC-WS-0050 | 16 - 27 | 9.9 | 0.762 | 3.4 | 4.5 | 182 | £15.30 | 60 |
10
|
|
| JC-WS-0060 | 20 - 32 | 9.9 | 0.762 | 3.4 | 4.5 | 92 | £15.60 | 140 |
10
|
|
| JC-WS-0070 | 25 - 40 | 9.9 | 0.762 | 3.4 | 6 | 92 | £16.20 | 60 |
10
|
|
| JC-WS-0080 | 30 - 45 | 9.9 | 0.762 | 3.4 | 6 | 92 | £16.50 | 20 |
10
|
|
| JC-WS-0090 | 32 - 50 | 9.9 | 0.762 | 3.4 | 6 | 92 | £16.80 | 20 |
10
|
|
| JC-WS-0100 | 40 - 60 | 9.9 | 0.762 | 3.4 | 6 | 92 | £17.70 | 20 |
10
|
|
| JC-WS-0110 | 50 - 70 | 9.9 | 0.762 | 3.4 | 6 | 92 | £18.60 | 60 |
10
|
