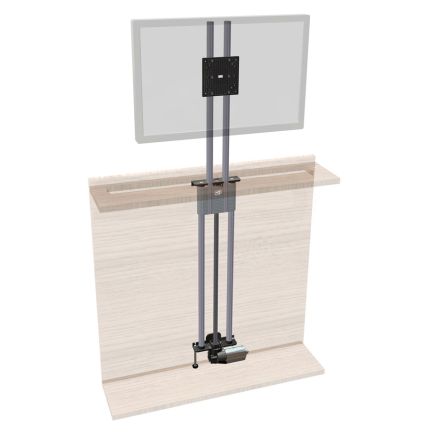

Ket Screen Lift Small 4701
Product Description
Cost-efficient, compact lifting system. For screens up to 24” and weights up to 25 kg.
Special features
System with high lifting speed. Simple installation. Very low noise level allows applications in noise sensitive areas.
Customer specific
The system can be supplied with any stroke up to 750 mm even for single piece deliveries.
Safety information
Anti-pinch system can be connected.
Additional technical data
| Product Code | Type | Movement speed | Stroke | Max. load | Max. screen size | Retracted length | No. of Packs |
|---|---|---|---|---|---|---|---|
| 4701.00-V03HXXXX | Standard | 90 mm/s | customer specification (max. 750 mm) | 250 N | 24” | Stroke+219 mm | Enquire Now |
| 4701.00-V05HXXXX | Short | 90 mm/s | customer specification (max. 750 mm) | 250 N | 24” | Stroke+157 mm | Enquire Now |
| 4701.00-V07HXXXX | Basic | 90 mm/s | customer specification (max. 750 mm) | 250 N | 24” | Stroke+215 mm | Enquire Now |
