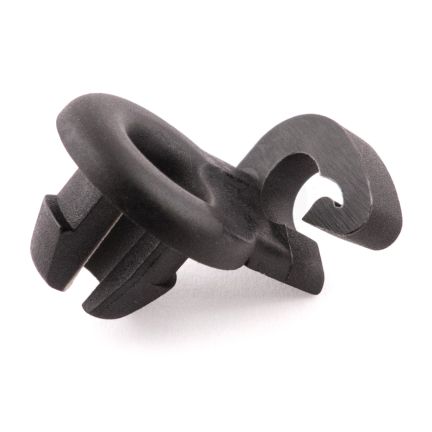

Linkage Holders
Product Description
Easy and secure joints and linkages fastening, with possible disassembly.
If the part you are looking for is not shown, please enquire to the sales office with the dimensions and the quantity. We stock a wide variety of different sizes, subject to availability.

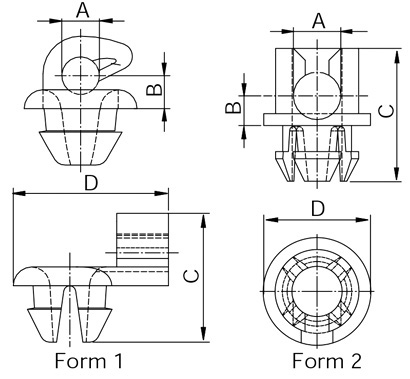

| Product Code | Panel Thickness | Hole Size | A | B | C | D | Form | Colours | Pricei | Stock | Pack Sizei | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LICC-0010-BLK | 1.75 - 2.25 | 5.9 - 6 | 3 | 2.5 | 12 | 16 | 1 | Black | £10.00 | 522 |
50
|
|
| LICC-0030 | 2 - 2.13 | 5.9 - 6.2 | 4 | 5 | 13.3 | 22.6 | 1 | Natural | i | i | - | Enquire Now |
| LICC-0040-BLK | 3 - 3.3 | 7.7 - 7.3 | 4 | 3.5 | 14.5 | 16.5 | 1 | Black | £13.50 | 490 |
100
|
|
| LICC-0050-NAT | 2 - 2.3 | 7.8 - 8 | 4 | 3.5 | 13.7 | 16.5 | 1 | Natural | £14.50 | 505 |
100
|
|
| LICC-0050-BLK | 2 - 2.3 | 7.8 - 8 | 4 | 3.5 | 13.7 | 16.5 | 1 | Black | £14.50 | 500 |
100
|
|
| LICC-0060-BLK | 2 - 2.3 | 7.8 - 8 | 4 | 3.5 | 13.7 | 16.5 | 1 | Black | £14.50 | 527 |
100
|
|
| LICC-0070-NAT | 2 - 2.3 | 7.8 - 8 | 4 | 3.5 | 13.7 | 16.5 | 1 | Natural | £10.00 | 200 |
50
|
|
| LICC-0110-NAT | 1.95 - 2.05 | 6 - 6.2 | 3.5 | 2.6 | 13 | 9 | 2 | White | £13.50 | 520 |
100
|
