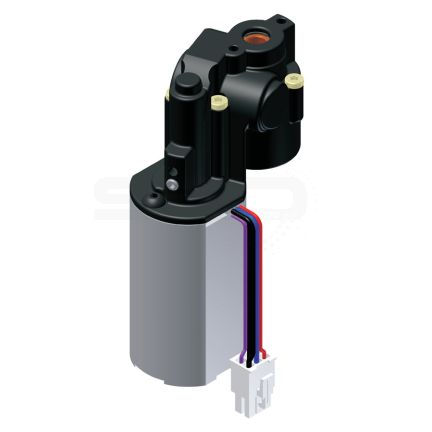

Motor drive 3121
Product Description
Motor drive with through-going hexagon socket.
Special features
Integrated position measuring system. Simple upgrade from manual to motorized solution.
Customer specific
Compact motor drive for customer specific applications. Motor drive is parallel to the connecting rod.
* in combination with LogicData control box Compact-3
| Product Code | Motor | Sensor/Power supply | Input | Duty cycle | Idle running speed | Max. drive torque | Protection class | No. of Packs |
|---|---|---|---|---|---|---|---|---|
| 3121.00-2002 | DC Motor 24 V | Hall/5 V DC/0.3 A | inner hex 6 mm | 20% (at 5 min.) | 150 rpm (24 V) 150 rpm * | 3 Nm | IP30 | Enquire Now |
| 3121.00-2003 | DC Motor 24 V | Hall/5 V DC/0.3 A | inner hex 7 mm | 20% (at 5 min.) | 150 rpm (24 V) 150 rpm * | 3 Nm | IP30 | Enquire Now |
