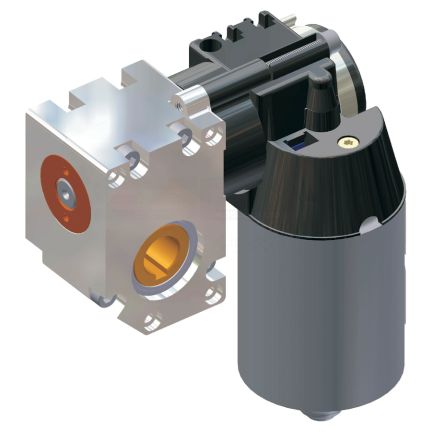

Motor drive 4773
Product Description
Electric motor solution provided with a combination of two worm gears and a planetary gear.
Electric motor solution provided with a combination of two worm gears and a planetary gear.
- Special features
- Compact, precise gear
- Longevity at heavy duty
- High gear reduction, fine position adjustment
- Smooth running
- High output torque
Customer specific
Compact motor drive for customer specific applications. Can be modified to your requirements.
| Product Code | Motor | Sensor/Power supply | Current | Input | Duty cycle | Idle running speed | Max. drive torque | Protection class | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|
| 4773.00-0002 | DC Motor 18 V | Hall/5 V DC/0.3 A | Typically: 2.0 A at 40 Nm | spline shaft 40 Nm | 20% (at 5 min.) | 1 rpm (24 V) 1.5 rpm (33 V) | 40 Nm | IP30 | Enquire Now |
