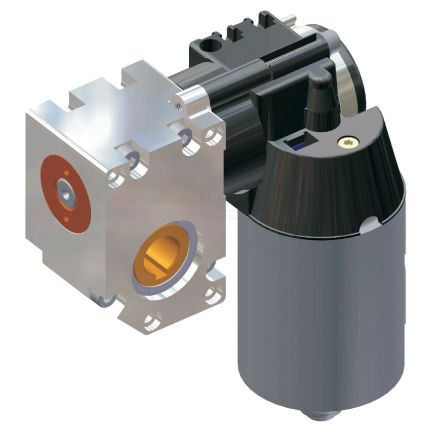

Motor drive 4773.00-0002
Product Description
Electric motor solution provided with a combination of two worm gears and a planetary gear.
Special features
Compact, precise gear
Longevity at heavy duty
High gear reduction, fine position adjustment
Smooth running
High output torque
Customer specific
Compact motor drive for customer specific applications. Can be modified to your requirements.
| Motor | Sensor/Power supply | Current | Input | Duty cycle | Idle running speed | Max. drive torque | Protection class |
|---|---|---|---|---|---|---|---|
| DC Motor 18 V | Hall/5 V DC/0.3 A | Typically: 2.0 A at 40 Nm | spline shaft 40 Nm | 20% (at 5 min.) | 1 rpm (24 V) 1.5 rpm (33 V) | 40 Nm | IP30 |
