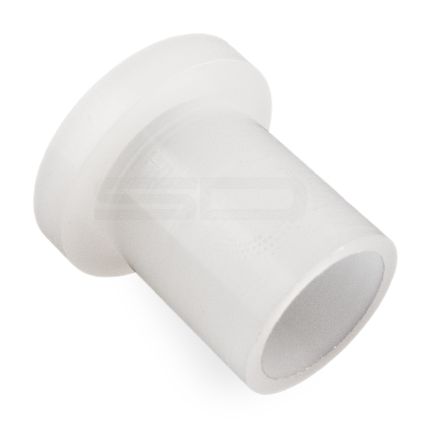

Nylon Screw Insulators

Product Description

Screw Insulators provide electrical insulation for metal screws as well as reducing corrosion. They can also be used as light load bearings in many applications.

Material
Natural Nylon 6/6

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Code	Size	A	B	C	D	L	No. of Packs
NSI-3006-2-3.9	M3	6	2	3.9	3.2	1.5	Enquire Now
NSI-3006-3-3.9	M3	6	3	3.9	3.2	1.5	Enquire Now
NSI-3006-4-3.9	M3	6	4	3.9	3.2	1.5	Enquire Now
NSI-3006-5-3.9	M3	6	5	3.9	3.2	1.5	Enquire Now
NSI-3006-2-4.9	M3	6	2	4.9	3.2	1.5	Enquire Now
NSI-3006-3-4.9	M3	6	3	4.9	3.2	1.5	Enquire Now
NSI-3006-4-4.9	M3	6	4	4.9	3.2	1.5	Enquire Now
NSI-3006-5-4.9	M3	6	5	4.9	3.2	1.5	Enquire Now
NSI-4008-2-5.9	M4	8	2	5.9	4.3	1.5	Enquire Now
NSI-4008-3-5.9	M4	8	3	5.9	4.3	1.5	Enquire Now
NSI-4008-4-5.9	M4	8	4	5.9	4.3	1.5	Enquire Now
NSI-4008-5-5.9	M4	8	5	5.9	4.3	1.5	Enquire Now
NSI-5010-2-6.9	M5	10	2	6.9	5.3	1.5	Enquire Now
NSI-5010-3-6.9	M5	10	3	6.9	5.3	1.5	Enquire Now
NSI-5010-4-6.9	M5	10	4	6.9	5.3	1.5	Enquire Now
NSI-5010-5-6.9	M5	10	5	6.9	5.3	1.5	Enquire Now
NSI-5015-2-7.9	M5	15	2	7.9	5.3	1.5	Enquire Now
NSI-5015-3-7.9	M5	15	3	7.9	5.3	1.5	Enquire Now
NSI-5015-4-7.9	M5	15	4	7.9	5.3	1.5	Enquire Now
NSI-5015-5-7.9	M5	15	5	7.9	5.3	1.5	Enquire Now
NSI-6012.5-2-8.9	M6	12.5	2	8.9	6.4	1.5	Enquire Now
NSI-6012.5-3-8.9	M6	12.5	3	8.9	6.4	1.5	Enquire Now
NSI-6012.5-4-8.9	M6	12.5	4	8.9	6.4	1.5	Enquire Now
NSI-6012.5-5-8.9	M6	12.5	5	8.9	6.4	1.5	Enquire Now
NSI-8017-2-10.9	M8	17	2	10.9	8.4	1.5	Enquire Now
NSI-8017-3-10.9	M8	17	3	10.9	8.4	1.5	Enquire Now
NSI-8017-4-10.9	M8	17	4	10.9	8.4	1.5	Enquire Now
NSI-8017-5-10.9	M8	17	5	10.9	8.4	1.5	Enquire Now
NSI-8025-2-10.9	M8	25	2	10.9	8.4	1.5	Enquire Now
NSI-8025-3-10.9	M8	25	3	10.9	8.4	1.5	Enquire Now
NSI-8025-4-10.9	M8	25	4	10.9	8.4	1.5	Enquire Now
NSI-8025-5-10.9	M8	25	5	10.9	8.4	1.5	Enquire Now
