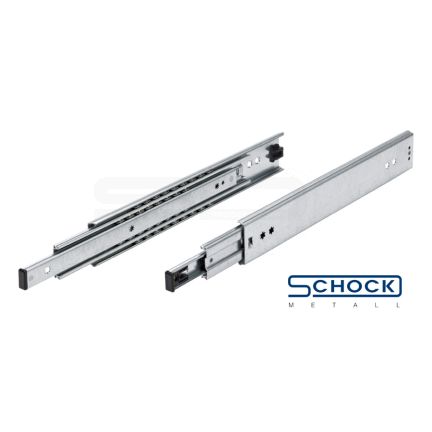

Over-extension Series 038 - 038-17871
Product Description
Load capacity up to 100 kg.
Travel 100% +.
Hold-in detent.
Materials and finishes
Slide rails: hot-dip galvanized steel
Ball cages: pre-zinced steel
Balls: hardened carbon steel
Temperature range
Working temperature +10°C to +40°C
Storage and transport temperature -20°C up to max. +80°C
| Length | Travel | Horizontal Load Capacity Per Pair (kg) (at 100.000 cycles) | Load Capacity Per Pair (kg) (at 100.000 cycles) | A | B | C | Weight (kg / pair) |
|---|---|---|---|---|---|---|---|
| 350 | 400 | 16 | 60 | 128 | 152 | 256 | 1.96 |
