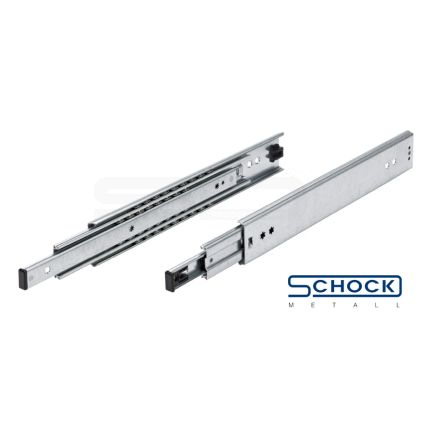

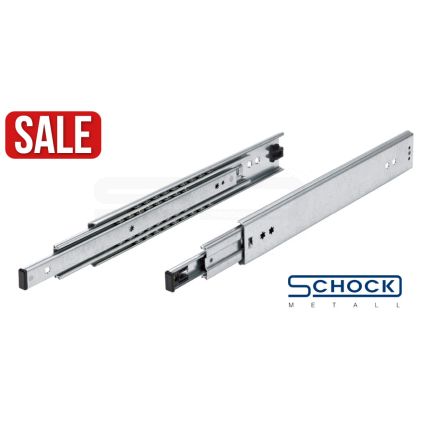

Over-extension Series 38
Product Description
Load capacity up to 100 kg.
Travel 100% +.
Hold-in detent.
Materials and finishes
Slide rails: hot-dip galvanized steel
Ball cages: pre-zinced steel
Balls: hardened carbon steel
Temperature range
Working temperature +10°C to +40°C
Storage and transport temperature -20°C up to max. +80°C
Pack Size
1 pack contains 1 pair of slides
| Product Code | Length | Travel | Horizontal Load Capacity Per Pair (kg) (at 100.000 cycles) | Load Capacity Per Pair (kg) (at 100.000 cycles) | A | B | C | Weight (kg / pair) | Pricei | Stock | Pack Sizei | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 038-17871 | 350 | 400 | 16 | 60 | 128 | 152 | 256 | 1.96 | £11.50 | 95 |
1
|
|
| 038-17873 | 450 | 500 | 16 | 70 | 160 | 224 | 256 | 2.57 | £12.50 | 102 |
1
|
|
| 038-17874 | 500 | 550 | 16 | 75 | 224 | 208 | 384 | 2.91 | £13.00 | 100 |
1
|
