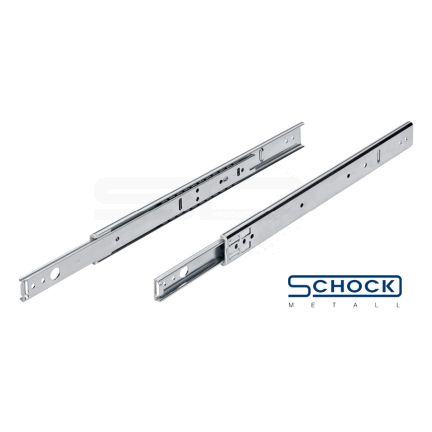

Partial Extension Series 016 - 016-06330Z
Product Description
Load capacity up to 65 kg.
Detachable inner rail.
Hold-out detent.
Positive stop in closed position.
Materials and finishes
Slide rails: zinc electroplated and blue passivated steel
Ball cages: pre-zinced steel
Balls: hardened carbon steel
Temperature range
Working temperature +10°C to +40°C
Storage and transport temperature -20°C up to max. +80°C
| Length | Travel | Load Capacity Per Pair (kg) (at 100.000 cycles) | A | B | C | D | E | F | G | Weight (kg / pair) |
|---|---|---|---|---|---|---|---|---|---|---|
| 305 | 196 | 54 | - | 215.9 | 254 | - | 149.2 | 260.3 | 273 | 0.6 |
Special Price
£11.90
Regular Price
£11.90
Partial Extension Series 016 - 016-06330Z is available to buy in increments of 1
