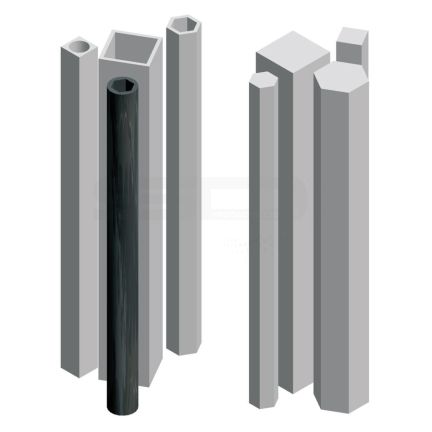

Profile tubes and rods
Product Description
You get profile rods and profile tubes as rods in a length of 3 m.
Special features
The profile rods are made of steel and drawn according to DIN 176 (hexagon bars) and according to DIN 178 (square bars). The profile tubes are made of steel and drawing to DIN 2391.
Customer specific
Further profile rods, profile tubes, special lengths and machining on request.
Drawn According to DIN 2391
| Product Code | Material | Outer dimension | Inner dimension | No. of Packs |
|---|---|---|---|---|
| 209R0.08.0-6kt5 | Steel | Ø8 | hex 5mm | Enquire Now |
| 209R0.09.0-6kt6-SL | Steel | Ø9 | hex 6mm | Enquire Now |
| 209R0.10.0-6kt6 | Steel | Ø10 | hex 6mm | Enquire Now |
| 209R0.10.0-6kt7 | Steel | Ø10 | hex 7mm | Enquire Now |
| 209R0.12.0-4kt7 | Steel | Ø12 | square 7mm | Enquire Now |
| 203R0.12.0-4kt7 | Brass | Ø12 | square 7mm | Enquire Now |
| 203R0.12.0-4kt8 | Brass | Ø12 | square 8mm | Enquire Now |
| 209R0.12.0-6kt6 | Steel | Ø12 | hex 6mm | Enquire Now |
| 201R0.12.0-6kt6SL | Aluminium black (anodised) Aluminium-tube DIN 17611 / quality E6 | Ø12 | hex 6mm | Enquire Now |
| 201R0.12.0-6kt7 | Aluminium black (anodised) Aluminium-tube DIN 17611 / quality E6 | Ø12 | hex 7mm | Enquire Now |
| 201R0.12.0-6kt8 | Aluminium black (anodised) Aluminium-tube DIN 17611 / quality E6 | Ø12 | hex 8mm | Enquire Now |
| 209R6.09.0-6kt6 | Steel | hex 9mm | hex 6mm | Enquire Now |
| 209R6.12.0-6kt9 | Steel | hex 9mm | hex 9mm | Enquire Now |
Drawn According to DIN 176 (hexagon bars) and according to DIN 178 (square bars)
| Product Code | Material | Outer dimension | No. of Packs |
|---|---|---|---|
| 209S4.06.0 | Steel | square 6mm | Enquire Now |
| 203V4.06.0 | Brass | square 6mm | Enquire Now |
| 209S6.05.0 | Steel | hex 5mm | Enquire Now |
| 209S6.06.0 | Steel | hex 6mm | Enquire Now |
| 209S6.07.0 | Steel | hex 7mm | Enquire Now |
| 209S6.08.0 | Steel | hex 8mm | Enquire Now |
| 203V6.08.0 | Brass | hex 8mm | Enquire Now |
| 209S6.09.0 | Steel | hex 9mm | Enquire Now |
| 209S6.12.0 | Steel | hex 12mm | Enquire Now |
| 203V6.12.0 | Brass | hex 12mm | Enquire Now |
