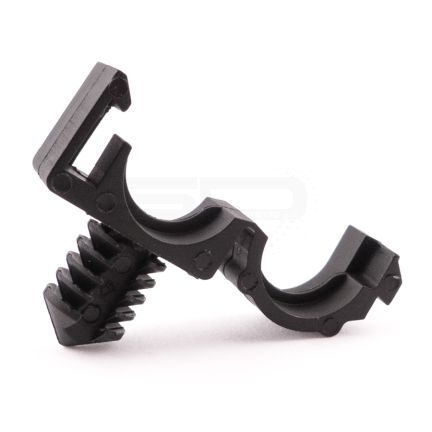

Push Fit Hinged Cable Clips
Product Description
Suitable for securing convoluted conduit. Hinge mechanism locks cable in place.
Colour
Black
Type 1
| Product Code | Cable Ø | Hole | Panel | Cable/Tube Type | A | Pricei | Stock | Pack Sizei | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|
| PF-CC-0020 | 5 | 4.8 | 0.8 - 1 | Standard | - | i | i | - | Enquire Now |
| PF-CC-0210 | 6 | 7.1 | 1 - 6.5 | Standard | 10.5 | £10.00 | 170 |
100
|
|
| PF-CC-2-0120 | 6.6 | 4.9 | 1 - 2.7 | Standard | 11.7 | £13.00 | 300 |
100
|
|
| PF-CC-0030 | 6.8 - 7.4 | 6.5 - 6.7 | 1 - 6 | Corrugated | 10.4 | £10.00 | 300 |
100
|
|
| PF-CC-0200 | 8.4 / 12.4 | 7.3 | 2.7 - 14 | Corrugated | 20.8 | £14.00 | 269 |
100
|
|
| PF-CC-0050 | 9 | 6.5 | 0.5 - 5 | Standard | - | i | i | - | Enquire Now |
| PF-CC-0060 | 9.6 - 10.2 | 6.5 - 6.7 | 1 - 6 | Corrugated | 10.5 | i | i | - | Enquire Now |
| PF-CC-0110 | 16 - 18.5 | 6.5 | 0.8 - 6 | Corrugated | 10.5 | i | i | - | Enquire Now |
| PF-CC-0140 | 22.6 - 23.4 | 6.5 - 6.7 | 0.8 - 6 | Standard | 12.75 | £16.50 | i |
50
|
Enquire Now |
| PF-CC-0160 | 25.1 - 25.9 | 6.5 - 6.7 | 1 - 6 | Corrugated | 10.5 | i | i | - | Enquire Now |
Type 2
| Product Code | Cable Ø | Hole | Panel | Cable/Tube Type | A | Pricei | Stock | Pack Sizei | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|
| PF-CC-2-0060 | 7.5 | 3.5 | 0.5 - 2 | Standard | 9.1 | £13.00 | 300 |
100
|
|
| PF-CC-2-0110 | 9.1 | 6.1 x 11.3 | 0.8 - 2 | Standard | 7.5 | £16.00 | 200 |
100
|
|
| PF-CC-2-0040 | 10.7 / 16.1 | 4.5 | 0.5 - 5.2 | Corrugated | 13.9 | £14.00 | 100 |
100
|
|
| PF-CC-2-0030 | 12.3 / 15.9 | 4 | 0.5 - 5 | Corrugated | 13.8 | £15.00 | 300 |
100
|
|
| PF-CC-2-0050 | 2 x 13.5 | 6.6 x 6.7 | 0.5 - 3 | Standard | 9.8 | £12.50 | 300 |
50
|
|
| PF-CC-2-0010 | 14.3 / 17.9 | 5.9 | 0.5 - 4.8 | Corrugated | 14.1 | £14.00 | 113 |
100
|
|
| PF-CC-0090 | 15.5 - 16.1 | 6.5 - 6.7 | 2.5 | Corrugated | 9.3 | i | i | - | Enquire Now |
| PF-CC-0100 | 17 | 7.5 | 0.8 - 3 | Standard | - | i | i | - | Enquire Now |
| PF-CC-0130 | 20.6 - 21.4 | 6.5 - 6.7 | 0.8 - 2.5 | Corrugated | 8.4 | £10.00 | 137 |
100
|
|
| PF-CC-0150 | 25.1 - 25.9 | 6.5 - 6.7 | 0.8 - 2.5 | Corrugated | 8.4 | i | i | - | Enquire Now |
| PF-CC-0170 | 33 - 35 | 6.5 - 6.7 | 0.8 - 2.5 | Standard | 7 | i | i | - | Enquire Now |
Type 3
| Product Code | Cable Ø | Hole | Panel | Cable/Tube Type | A | Pricei | Stock | Pack Sizei | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|
| PF-CC-0010 | 3 - 16 | 6.7 | 0.7 - 3 | Standard | 5.7 | i | i | - | Enquire Now |
| PF-CC-0070 | 11 - 18 | 6.35 - 6.7 | 0.5 - 3 | Standard | 6.7 | i | i | - | Enquire Now |
| PF-CC-0080 | 13 | 6.2 x 12.2 | 0.8 - 3 | Standard | 6.7 | i | i | - | Enquire Now |
Type 4
| Product Code | Cable Ø | Hole | Panel | Cable/Tube Type | A | Pricei | Stock | Pack Sizei | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|
| PF-CC-0040 | 6 - 12 | 6.35 - 6.7 | 0.5 - 2 | Standard | 6.7 | £14.00 | 300 |
100
|
|
| PF-CC-0120 | 17 - 24 | 6.3 - 6.7 | 0.7 - 3 | Standard | 6.7 | i | i | - | Enquire Now |
