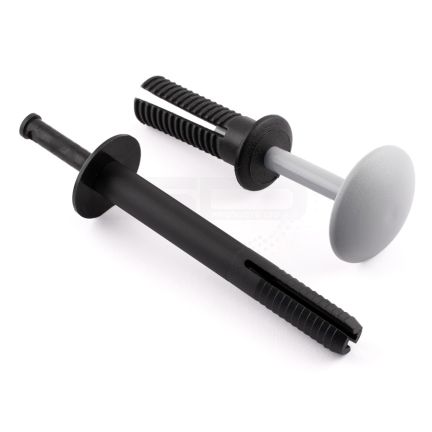

Rivets - Panel Type
Product Description
Panel Type Rivets are quick and easy to install, ideal for fastening sheet and fixtures and can also be used for fixing to solid or hollow materials including wood, concrete, plaster and metal.
Material
Body - Nylon
Drive Pin - Polycarbonate
Specials
If the Panel Type Rivets you are looking for are not shown, please enquire to the sales office with the dimensions and quantity. We stock a wide variety of different sizes and we can manufacture different sizes if required, these may be subject to minimum order quantities.
Form 1
| Product Code | Panel Thickness | H | L | Pricei | Stock | Pack Sizei | No. of Packs |
|---|---|---|---|---|---|---|---|
| AP-AR-0540 | 1.8 - 12.8 | 6.5 | 15.2 | £5.48 | 300 |
50
|
|
| AP-AR-0580-BLK | 2 - 11.4 | 6.5 | 15.2 | £5.48 | 300 |
50
|
|
| AP-AR-0500-BLK | 2 - 12.7 | 6.8 | 15 | £6.08 | 33300 |
50
|
|
| AP-AR-0550-BLK | 2.1 - 12.8 | 6.5 | 15 | £5.08 | i |
50
|
Enquire Now |
| AP-AR-0520-BLK | 2.9 - 11 | 6.8 | 14.8 | £5.36 | 4431 |
50
|
|
| AP-AR-0510-BLK | 6.8 - 17.6 | 6.5 | 19.9 | £8.29 | 8300 |
50
|
|
| AP-AR-0570-BLK | 7.1 - 17.6 | 6.8 | 19.9 | £5.98 | 300 |
50
|
|
| AP-AR-0560-BLK | 7.5 - 17.1 | 6.1 | 21.2 | £5.24 | 250 |
50
|
Form 2
| Product Code | Panel Thickness | L | Pricei | Stock | Pack Sizei | No. of Packs |
|---|---|---|---|---|---|---|
| AR-90010-BLK | 3 - 9.5 | 14.3 | i | i | - | Enquire Now |
| AR-90020-BLK | 3 - 14.2 | 18.5 | i | i | - | Enquire Now |
| AR-90030-LIGHT-GREY | 3.4 - 12.6 | 19 | i | i | - | Enquire Now |
| AR-90040-BLK | 1.1 - 16.7 | 20 | i | i | - | Enquire Now |
| AR-90050-LIGHT-GREY | 1.1 - 16.7 | 20 | i | i | - | Enquire Now |
| AR-90060-DARK-GREY | 1.1 - 16.7 | 20 | i | i | - | Enquire Now |
| AR-90070-LIGHT-GREY | 8.2 - 27.3 | 29.8 | i | i | - | Enquire Now |
| AR-90080-DARK-GREY | 6.6 - 27.5 | 29.9 | i | i | - | Enquire Now |
| AR-90090-LIGHT-GREY | 13 - 26.6 | 30.9 | i | i | - | Enquire Now |
| AR-90100-BLK | 13.6 - 26.6 | 31 | i | i | - | Enquire Now |
