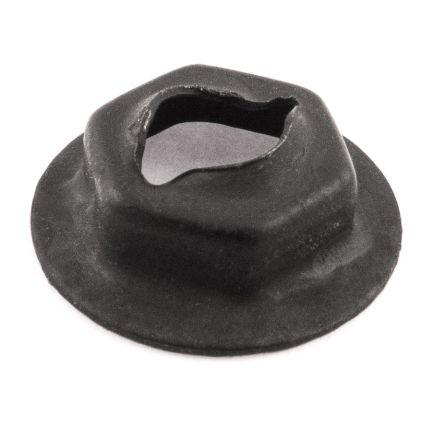

Self Threading Nuts - Washer Type
Product Description
Washer Type Self Threading Nuts have the resilience of the washer providing a firm assembly but cushion the shock of tightening so that fragile components are not broken or damaged. The thread forming displaces material without producing swarf.
Material
Austempered Carbon Steel
Finish
Phosphate Painted Black/Zinc
*Extra Measurements
T1 – Recommended Tightening Torque for Die Cast Stud in Newton Meters.
F1 – Resulting Tension in Newtons.
T2 – Recommended Tightening Torque for Steel Studs in Newton Meters.
F2 – Resulting Tension in Newtons.
| Product Code | Stud | D | F1 | F2 | H | T1 | T2 | W | Pricei | Stock | Pack Sizei | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SD-125007-BLK | 3.2 | 11.1 | 400 | 578 | 4.7 | 1.7 | 2.9 | 7.9 | i | i | - | Enquire Now |
| SD-320011 | 3.2 | 11 | 400 | 578 | 4.7 | 1.7 | 2.9 | 8 | i | i | - | Enquire Now |
| SD-040014 | 4 | 14.5 | - | - | 4.5 | - | - | 9 | i | i | - | Enquire Now |
| SD-188008-NOE | 4.8 | 12.7 | 934 | 1335 | 5.5 | - | - | 9.5 | £10.00 | 2967 |
100
|
|
| SD-050014 | 5 | 14.5 | - | - | 4.5 | - | - | 9 | i | i | - | Enquire Now |
| SD-050015-O-D | 5 | 15 | 890 | 1335 | 5.4 | 4.5 | 6.1 | 10 | £6.99 | 101685 |
100
|
|
| SD-050021-BLK | 5 | 21 | 712 | 1246 | 6.6 | 5.7 | 7.2 | 10 | i | i | - | Enquire Now |
| SD-060015 | 6 | 15.1 | - | - | 5.8 | - | - | 11 | i | i | - | Enquire Now |
| SD-630018-BLK | 6.3 | 18 | 890 | 1335 | 6.7 | 8.5 | 10.2 | 11 | i | i | - | Enquire Now |
| SD-250011-BLK | 6.4 | 17.5 | 890 | 1335 | 6.3 | 8.5 | 10.2 | 11.1 | i | i | - | Enquire Now |
| SD-080013 | 8 | 13 | - | - | 7.9 | - | - | 20 | i | i | - | Enquire Now |
