SHR-HIS Spiral Housing Rings - SHR-HIS-200
Product Description

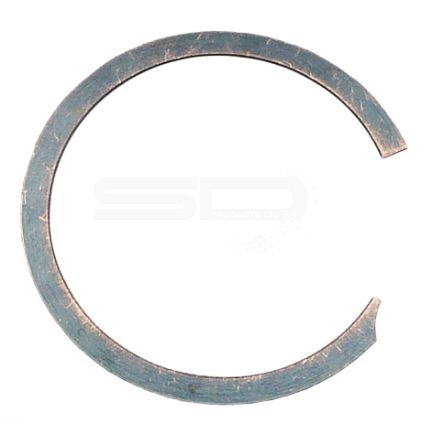

Internal, Heavy-Duty Snap Ring
These single-turn snap rings are ideal for applications involving high thrust loads.
| Shaft Dia. (In.) Ds | Groove Dia. (Dg and Tol.) | Groove Width (W and Tol.) | Ring Free Dia. (Df and Tol.) | Ring Section (S and Tol.) | Ring Thickness (T and Tol.) | Thrust Load (lbs.) Groove Safety Factor of 2 | Thrust Load (lbs.) Ring Safety Factor of 3 |
|---|---|---|---|---|---|---|---|
| 2 | 2.118 (+0.012/-0.0) | 0.085 (+0.006/-0.0) | 2.143 (+0.025/-0.0) | 0.2 (±0.005) | 0.076 (±0.003) | 8341 | 17191 |
